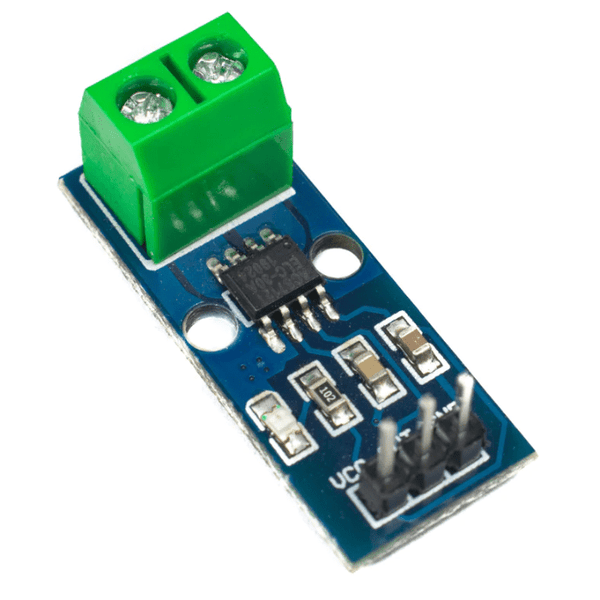

ACS712 30A Current Sensor Module
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Use this to measure current up to 30A with an analog output and full electrical isolation from the circuit being measured. Commonly used on servo robots, motor rigs and battery discharge logging where a 5A sensor is exceeded the moment the motors start. Not suitable for precise low currents — the 30A part trades resolution for range, so a 200mA load reads as noise; use a 5A or 20A part for small draws. Key specs: 30A bidirectional, 5V supply, analog output, isolated. Alternative: the 20A version for mid-range work, or an INA226 for anything below an amp.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
