APM 2.8 Flight Controller Board with Built-in Compass | Drone UAV

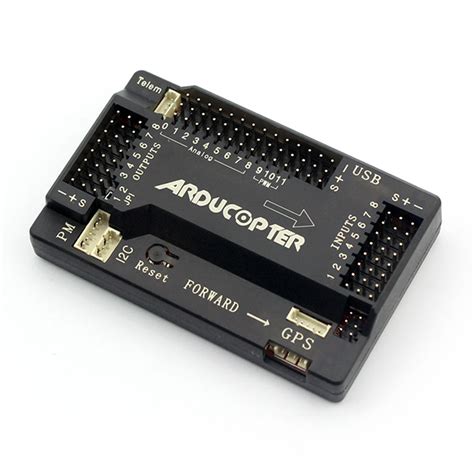

APM 2.8 Flight Controller Board with Built-in Compass for Drones and UAVs
The APM 2.8 is a versatile open-source flight controller board designed for multirotor drones, quadcopters, and UAVs. It features an integrated compass (magnetometer), MPU-6000 6-axis gyroscope/accelerometer, and a high-precision barometer. This board runs ArduPilot firmware, enabling autonomous flight modes, GPS waypoint navigation, and stabilisation.
Key Specifications
| Specification | Value |
|---|---|
| Processor | ATmega2560 + ATmega32U-2 |
| Sensors | MPU-6000 (gyro/accel), MS5611 (baro), HMC5883L (compass) |
| Input Voltage | 7–20V via power module or BEC |
| PWM Outputs | 8 channels (up to 12 with PPM/SBUS) |
| Weight | ~33g (board only) |
| Dimensions | 70 x 47 x 12 mm |
What You Can Build With This
- Autonomous quadcopter with GPS waypoint navigation
- Fixed-wing UAV with stabilisation and return-to-home
- Multi-rotor drone for aerial photography
- Rover or boat with ArduPilot autonomy
Compatibility
The APM 2.8 works with ArduPilot firmware and is compatible with most RC receivers (PWM, PPM, SBUS). It pairs directly with GPS modules like uBlox NEO-6M/7M for navigation. Common combos include FPV camera transmitters and OSD modules for live video overlay.
Wiring Notes
Connect the power module to the PM port for voltage/current sensing. I2C compass is on-board; ensure no external magnetometer conflicts when adding GPS. Use vibration damping mount for best gyro performance.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with ArduPilot and Mission Planner?
Yes, the APM 2.8 is fully compatible with ArduPilot (Copter, Plane, Rover) and can be configured using Mission Planner software via USB.
Does the built-in compass work, or do I need an external one?
The on-board HMC5883L compass works well, but for heavy current setups, an external compass/GPS module is recommended to avoid magnetic interference.
What is the maximum current rating for the output rails?
The servo rail can supply up to 10A combined from a dedicated BEC; the board itself draws less than 500mA.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
