Arduino PWM LED Dimmer Kit - Beginner Project

SKU: CDN-KIT-1404-CL Brand: Compoden Category: Electronics > Beginner Arduino Projects > Project Kits
Rs. 510.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Arduino PWM LED Dimmer Kit - Beginner Project — a beginner-level kit.

Build Your First Analog Electronics Project with Arduino: LED Brightness Dimmer Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 1-2 hrs Skill: Analog Input & PWM Control

Your first hands-on analog electronics experience awaits. With this kit, you'll build a circuit where turning a potentiometer dial makes an LED glow brighter or dimmer-your first step into PWM control. It's the classic entry point to the analog world that underpins countless Arduino inventions.

What You'll Build

You'll wire up a complete LED dimming circuit on a breadboard, upload a simple Arduino sketch, and instantly control LED brightness with a twist of a knob. The finished project is a working demonstration of pulse width modulation-the same technique used to control motors, RGB LEDs, and servos.

What You'll Learn

  • How to read an analog voltage from a potentiometer using analogRead()
  • How to map analog readings to a 0-255 PWM range with a sketch
  • How to drive an LED with analogWrite() for smooth brightness control
  • How to wire a basic circuit with a potentiometer, LED, and resistor on a breadboard

Kit Contents

Component Quantity

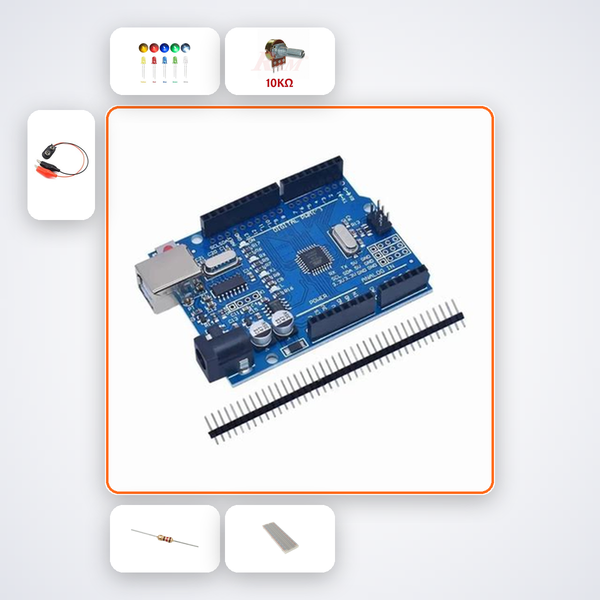

Arduino Uno R3 x1
5mm White LED x3
10kΩ Potentiometer x1
220Ω Resistors x5
400-pt Breadboard x1
M-M Wires x20
9V Battery Snap x1

Who This Kit Is For

Perfect for CBSE students, ATL Tinkering Lab participants, and hobbyists discovering Arduino for the first time. Also a great starting point for B.Tech ECE/EEE freshers brushing up on analog fundamentals before tackling larger projects for Smart India Hackathon.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to open the AI companion, which walks you through every step. You can also message us on WhatsApp for quick human help.

Do I need prior coding experience to build this?

Not at all. The Arduino sketch is pre-written and fully explained. You'll learn by wiring the circuit and seeing the code in action.

Can I use this knowledge for motor speed control later?

Absolutely. PWM is the same technique used to vary motor speed, servo angle, or LED color. This kit builds the foundational analog mapping skills you'll reuse in advanced projects.

What else do I need to get started?

You'll need a computer with the Arduino IDE installed and a USB cable (not included) to upload the code. A 9V battery is also required for standalone power.

Potentiometer controls LED brightness via analogWrite PWM. First analog project.
