Breadboard Standard Bundle - 830+400 Tie-Points for Prototyping

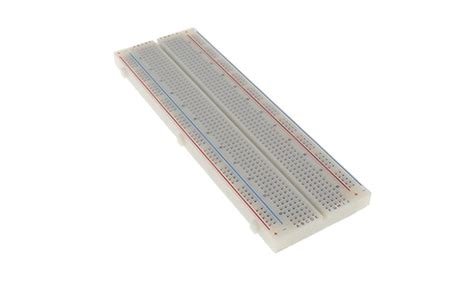

Breadboard Standard Bundle – 830-Point Full + 400-Point Half Breadboards
This bundle contains two essential prototyping breadboards: one 830-point full-size breadboard and one 400-point half-size breadboard, providing a combined total of 1230 tie points. Ideal for building and testing circuits without soldering, these boards are perfect for beginners, makers, and professionals. The included sizes give you flexibility for both large projects and compact modules.
Key Specifications
| Specification | Value |
|---|---|
| Total Tie Points | 1230 (830 + 400) |
| Full Breadboard Points | 830 tie points, 16.5 x 5.5 cm |
| Half Breadboard Points | 400 tie points, 8.2 x 5.5 cm |
| Power Rails | 2 pairs per board (4 rails total) |
| Material | ABS body, phosphor bronze contacts |
| Adhesive Backing | Yes, peel-and-stick on both |
What You Can Build With This
- Basic LED blink circuits with Arduino
- 555 timer oscillator or PWM generator
- Sensor modules (temperature, light, motion) for IoT
- Logic gates and transistor switching experiments
Compatibility
Compatible with all standard through-hole components, including DIP ICs, transistors, and passive components. Works seamlessly with Arduino Uno, Nano, ESP32, and Raspberry Pi using male-to-male jumper wires. Accepts 20–29 AWG solid core wires and headers with 0.1-inch spacing.
Wiring Notes
Insert component leads and wires straight down into the tie points until they seat firmly. Use solid core wire (22 AWG recommended) for reliable connections. Power rails run vertically along the sides; internal terminal strips connect horizontally in groups of five. Keep current under 500 mA per power rail to avoid overheating.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, both breadboards work perfectly with Arduino Uno, Mega, Nano, and other boards using standard jumper wires.
What is the difference between the two breadboards?
The 830-point breadboard is full-size for larger projects; the 400-point is compact for smaller prototypes. They can be used independently or together.
Do the breadboards have adhesive backing?
Yes, both include a peel-and-stick adhesive pad for mounting on project boards or enclosures.
