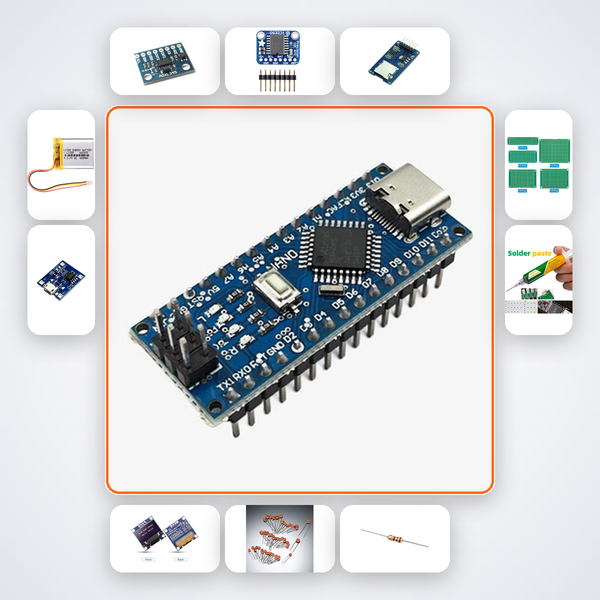

Capture Rocket Ignition Shock with Arduino Nano Kit
High-G Shock Recorder Kit with Arduino Nano: Capture Rocket Motor Ignition Events
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
When you light a solid rocket motor, the ignition shock can exceed 100g in milliseconds. This kit lets you capture that event at 1kHz with an ADXL377 accelerometer and log it to a microSD card, complete with precise timestamps from a DS3231 RTC. It's the same approach used by university rocketry teams and Smart India Hackathon participants who need reliable flight data without piecing together parts from multiple sources.
What You'll Build
You'll assemble a standalone shock recorder that samples a �200g accelerometer at 1,000 readings per second, stores data with date-time stamps, and shows real-time peak acceleration on a 0.96-inch OLED display. The final unit runs on a rechargeable LiPo battery and fits inside a small avionics bay. By the end, you'll have a rugged, reusable logger ready for static motor tests or low-power sounding rockets.
What You'll Learn
- Interfacing the ADXL377 high-g analog accelerometer with Arduino Nano
- Implementing 1kHz sampling on a low-power microcontroller without bottlenecks
- Logging structured CSV data to SD card using DS3231 RTC timestamps
- Soldering vibration-resistant connections and prototyping on perfboard for flight environments
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| ADXL377 200g Accel | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| 100nF Ceramic Capacitors | 10 |
| 4.7k? Resistors | 5 |
| 3.7V LiPo 500mAh | 1 |
| TP4056 Module | 1 |
| PCB Prototype Board | 2 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is aimed at engineering students (B.Tech ECE, EEE, Aerospace), rocketry enthusiasts, and participants in Smart India Hackathon or IIT/NIT/VIT rocketry clubs. It also suits advanced CBSE Class 12 physics projects where a mentor is available, and ATL Tinkering Labs upgrading from beginner builds to real data acquisition. The included soldering and calibration steps assume basic electronics assembly experience.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code for the AI companion that guides soldering, code upload, and calibration step by step. For human help, reach us on WhatsApp - we respond within 6 hours.
Can this recorder survive actual rocket motor ignition?
Yes, if securely mounted. The ADXL377 is rated for 10,000g shock survival. We include decoupling capacitors and suggest epoxy reinforcement for the prototype board to handle vibration.
What data format does it log?
It writes CSV files with columns: timestamp (YYYY-MM-DD HH:MM:SS.sss), X-g, Y-g, Z-g. Each row is one millisecond sample, directly importable into Excel or MATLAB.
Is coding experience required?
The Arduino sketch is fully commented; you upload it via USB. No prior coding is needed, but you'll learn to modify sampling rate and trigger thresholds in the source code.
ADXL377 high-g accelerometer samples at 1kHz to capture motor ignition shock events. Logs to SD.
What's in this kit
- Arduino Nano
- ADXL377 200g Accel
- DS3231 RTC
- MicroSD Module
- 0.96in OLED
- 100nF Caps x10
- 4.7k? Resistors x5
- 3.7V LiPo 500mAh
- TP4056 Module
- PCB Prototype Board x2
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
