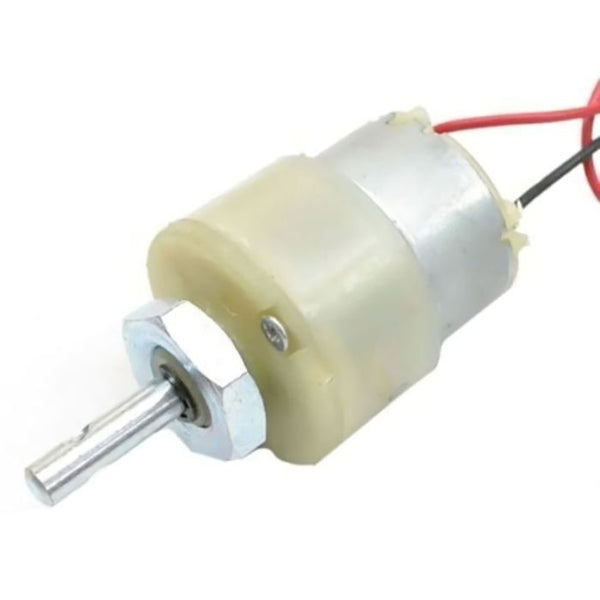

DC Geared Motor 12V 1000RPM – High Torque for Robotics & Automation
DC Geared Motor 12V 1000RPM – High Torque for Robotics & Automation
The DC Geared Motor 12V 1000RPM delivers high torque at 1000 RPM, ideal for robotics, automation, and DIY electronics projects with Arduino, ESP32, and Raspberry Pi.
Key Specifications
| Operating Voltage | 12V DC (Confirmed) |
|---|---|
| No-load Speed | 1000 RPM (Confirmed) |
| Rated Torque | 1.5 kg·cm (Typical*) |
| Stall Torque | 5.0 kg·cm (Estimated*) |
| Gear Ratio | 1:20 (Derived*) |
| Shaft Diameter | 6 mm (Typical*) |
| Rated Current | 0.5 A (Typical*) |
| Motor Type | Brushed DC (Confirmed) |
* Values marked are typical for similar motors and should be verified with exact datasheet.
What You Can Build With This
- Line-Following Robot: Build a beginner Arduino robot with IR sensors and an L298N motor driver to follow a black line.
- Wi-Fi Controlled Car: Stream live video from an ESP32-CAM while controlling motor speed and direction over a web interface.
- Automated Plant Watering: Use a Raspberry Pi to schedule motor-driven valve opening based on soil moisture sensor readings.
- DC Motor Speed Control (CBSE): Demonstrate PWM speed control with a 555 timer IC and MOSFET, ideal for Class 12 physics practical.
- Smart Warehouse Conveyor: Sort objects by RFID tags using motor-driven belts, a B.Tech final‑year project or Smart India Hackathon idea.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes – with motor driver | PWM pin (e.g. D9, D10), GND, 12V ext. | analogWrite() |
| Arduino Nano | Yes – with motor driver | PWM pin, GND, 12V ext. | analogWrite() |
| Arduino Mega 2560 | Yes – with motor driver | PWM pin, GND, 12V ext. | analogWrite() |
| ESP8266 NodeMCU | Yes – with motor driver | PWM pin (GPIO), GND, 12V ext. | analogWrite() |
| ESP32 Dev Board | Yes – with motor driver | PWM pin (GPIO), GND, 12V ext. | ledcWrite() |
| Raspberry Pi Pico | Yes – with motor driver | PWM pin, GND, 12V ext. | machine.PWM |
| Raspberry Pi 4 / 5 | Yes – with driver & transistor | GPIO PWM, GND, 12V ext. | RPi.GPIO / pigpio |
Wiring and Interface Notes
Connect the motor power wires to a motor driver module like L298N or L293D. Use a 12V external power supply for the motor, and ensure common ground with the microcontroller. Always add a flyback diode (e.g., 1N4007) across the motor terminals to protect against inductive voltage spikes.
Frequently Asked Questions
What is the stall current and how can I protect my circuit?
The motor typically draws around 2.5 A at stall. Use a power supply rated above 3 A and incorporate a fuse or overcurrent protection.
Can this motor be used with a simple transistor instead of a motor driver?
Yes, a MOSFET and flyback diode work for unidirectional control, but a motor driver is recommended for bidirectional operation and easier speed control.
