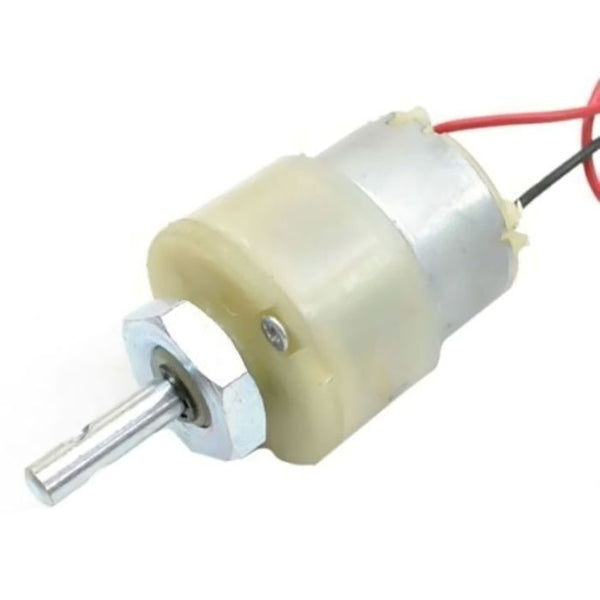

DC Geared Motor 12V 300RPM – High Torque for Robotics & Automation
DC Geared Motor 12V 300RPM – High Torque for Robotics & Automation
A 12V DC geared motor with 300RPM no-load speed and high stall torque, ideal for robotics and DIY automation projects. It features a durable metal gearbox and works with Arduino, ESP32, Raspberry Pi.
Key Specifications
| Operating Voltage | 12V DC |
| No-load Speed | 300 RPM |
| Stall Torque | 1.8 kg·cm |
| Rated Torque | 0.5 kg·cm |
| Gear Material | Metal |
| Shaft Diameter | 6 mm |
| Body Dimensions | Approx 37.5 x 24 x 23 mm |
| Weight | Approx 85 g |
What You Can Build With This
- Line Follower Robot: A classic Arduino beginner project using IR sensors and motor driver.
- Wi‑Fi Controlled Robot Car: ESP32 IoT vehicle controlled via smartphone over Wi‑Fi.
- Automated Pet Feeder: Raspberry Pi powered feeder with timed dispensing mechanism.
- Electric Wheelchair Model: CBSE Class 12 physics practical demonstrating DC motor control.
- Colour Sorting Conveyor Belt: B.Tech project using Arduino, colour sensor and this motor for automation.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes with L298N driver | Motor driver to pins 5,6 (PWM) | AFMotor.h |
| Arduino Nano | Yes with L298N driver | Motor driver to pins D5, D6 | AFMotor.h |
| Arduino Mega 2560 | Yes with L298N driver | Motor driver to any PWM pin | AFMotor.h |
| ESP8266 NodeMCU | Yes with L298N driver | Motor driver to D1, D2 (3.3V logic OK) | analogWrite() custom |
| ESP32 Dev Board | Yes with L298N driver | Motor driver to GPIO 25, 26 (PWM) | ledcWrite() |
| Raspberry Pi Pico | Yes with L298N driver | Motor driver to GP2, GP3 (PWM) | pwmio in CircuitPython |
| Raspberry Pi 4 / 5 | Yes with driver HAT | Motor HAT on GPIO header | RPi.GPIO or gpiozero |
Wiring and Interface Notes
Connect the motor terminals to the output of an L298N or L293D motor driver module. The driver's logic inputs should go to digital/PWM pins of your microcontroller. Always power the motor from a capable 12V supply—do not attempt to drive it directly from Arduino or Pi 5V pins, as they cannot supply sufficient current.
Frequently Asked Questions
Can I run this motor directly from an Arduino or Raspberry Pi GPIO?
No, you must use a motor driver board like L298N. Microcontrollers cannot provide the high current needed for the motor.
Is this motor suitable for a 5 kg line follower robot?
No, its torque is designed for small robots up to about 1 kg. For heavier payloads, choose a higher‑torque geared motor.
