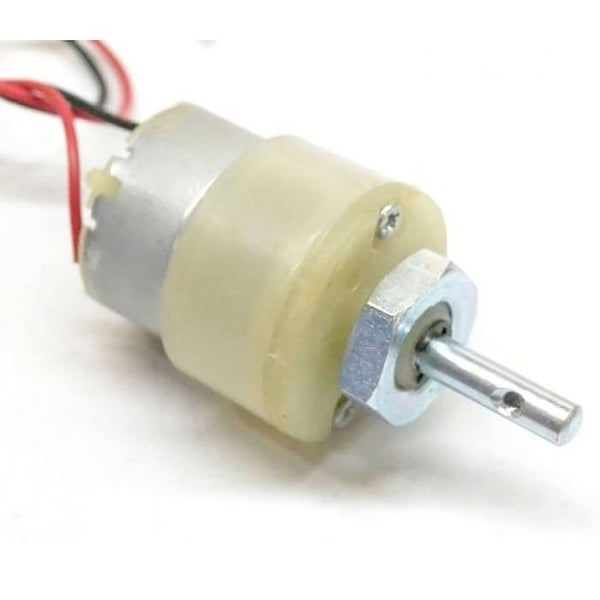

DC Geared Motor 12V 60RPM – High Torque for Robotics & Automation
DC Geared Motor 12V 60RPM – High Torque
The DC Geared Motor 12V 60RPM provides high torque for Arduino, ESP32, and Raspberry Pi robotics projects, offering reliable 12V operation with a 60RPM no-load speed suitable for wheeled and actuation applications.
Key Specifications
| Rated Voltage | 12 V DC (Typical) |
| No-load Speed | 60 RPM (Typical) |
| Rated Torque | 1.5 kg·cm (Typical) |
| Stall Torque | 3.5 kg·cm (Typical) |
| Gear Ratio | 1:83 (Estimated) |
| Shaft Diameter | 6 mm D‑type (Typical) |
| Stall Current | 1.2 A (Typical) |
| No-load Current | 0.15 A (Typical) |
What You Can Build With This
- Line‑Following Robot: Build a simple two‑wheeled bot using an IR sensor array and L298N driver, perfect for Arduino beginners.
- Smart Door Lock: Use an ESP32 to control the motor for a bolt mechanism, integrated with Blynk IoT for remote unlatch.
- Raspberry Pi Camera Slider: Drive a threaded rod with this motor and an H‑bridge to create smooth panning shots using Python.
- CBSE Class 11‑12 Practical: Study DC motor speed control using PWM with a transistor driver circuit, as per NCERT physics experiments.
- B.Tech Final Year Project: Design an automated conveyor belt system for a Smart India Hackathon project, sorting objects by color with sensors.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes with condition | D5, D6 (PWM) via L298N driver | analogWrite() |
| Arduino Nano | Yes with condition | D5, D6 (PWM) via L298N driver | analogWrite() |
| Arduino Mega 2560 | Yes with condition | D5‑D13 (PWM) via L298N driver | analogWrite() |
| ESP8266 NodeMCU | Yes with condition | D1, D2 (PWM) via L298N driver | analogWrite() |
| ESP32 Dev Board | Yes with condition | GPIO16‑19 (PWM) via L298N driver | ledcWrite() |
| Raspberry Pi Pico | Yes with condition | GP0, GP1 (PWM) via H‑bridge | machine.PWM |
| Raspberry Pi 4 / 5 | Yes with condition | GPIO17, 18 (PWM) via motor hat | RPi.GPIO |
Wiring and Interface Notes
Always use an H‑bridge motor driver (such as L298N or L293D) between the microcontroller and the motor to handle high currents and enable direction control. Provide a separate 12V DC power supply rated at least 2A for the motor, keeping the logic supply distinct to avoid noise. For PWM speed control, select any two digital pins for direction and one PWM‑capable pin for the enable line.
Frequently Asked Questions
What is the difference between rated torque and stall torque for this motor?
Rated torque (1.5 kg·cm) is the continuous load the motor can handle without overheating, while stall torque (3.5 kg·cm) is the momentary peak torque at startup or when the shaft is blocked. Prolonged stalling may damage the motor.
Can I power this 12V motor directly from a 9V battery?
A 9V battery cannot supply the required current (1.2A stall) and correct voltage, leading to poor performance. Use a dedicated 12V DC adapter or a battery pack with at least 2A capacity.
