ESP32-C6-WROOM-1-N8 Microcontroller Board with Wi-Fi 6 & BLE 5
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

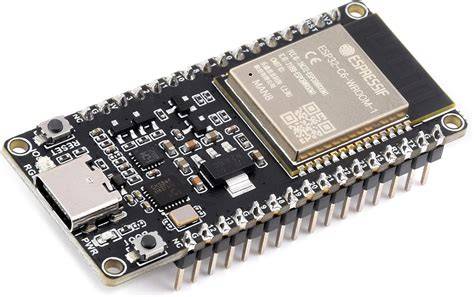

ESP32-C6-WROOM-1-N8 Development Board with Wi-Fi 6, BLE 5 and 802.15.4
The ESP32-C6-WROOM-1-N8 is a development board based on the ESP32-C6 chip, featuring a single-core 32-bit RISC-V processor, Wi-Fi 6 (802.11ax), Bluetooth 5 Low Energy, and an IEEE 802.15.4 radio for Thread, Zigbee, and Matter. It's ideal for low-power, high-efficiency IoT and smart-home applications. With 8MB of flash memory, it handles complex firmware and OTA updates reliably.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ESP32-C6 (single-core RISC-V 32-bit, up to 160 MHz) |
| Wi-Fi | Wi-Fi 6, 802.11ax (2.4 GHz) |
| Bluetooth | Bluetooth 5 Low Energy (LE) with Mesh |
| 802.15.4 | Thread / Zigbee / Matter |
| Flash Memory | 8 MB (Quad SPI) |
| Operating Voltage | 3.0V – 3.6V DC (3.3V typical) |
| Antenna | On-board PCB antenna |
What You Can Build With This
- Low-power IoT sensor node with Wi-Fi 6 or Thread mesh networking
- Matter-compliant smart home device over Thread or Wi-Fi
- Zigbee gateway or end device using the onboard 802.15.4 radio
- Wireless data logger with OTA firmware updates
Compatibility
Works with Arduino IDE (ESP32 Arduino core), ESP-IDF, and MicroPython. Compatible with standard 3.3V sensors, actuators, and expansion boards. Pairs well with the ESP32-C6-DevKitC for prototyping.
Wiring Notes
Use a 3.3V regulated supply and connect the EN pin to 3.3V through a 10kΩ pull-up resistor. For UART programming, connect TX, RX, and GPIO0 to the appropriate programmer pins. All GPIO operate at 3.3V — do not apply 5V to any pin.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-7 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, it's supported via the ESP32 Arduino core, allowing you to use the Arduino IDE with standard libraries.
Does this support Matter / Thread?
Yes. The ESP32-C6 includes an IEEE 802.15.4 radio, the basis for Thread and Zigbee, enabling Matter-over-Thread devices in addition to Matter-over-Wi-Fi.
Can I use this for battery-powered projects?
Yes, the ESP32-C6 features multiple low-power modes, making it suitable for battery operation with proper power management.
