ESP32 Scrolling Text LED Matrix Kit - Wi-Fi MQTT Display
ESP32 Wi-Fi Scrolling Message Board Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Build a Wi-Fi-connected 8x8 LED matrix that displays scrolling messages sent from anywhere using MQTT. Perfect for IoT dashboards, school notice boards, or a custom display for your room. In just a few hours, you'll have a working device that updates live whenever you publish a new text.
What You'll Build
Two daisy-chained MAX7219 matrices form a 16x8 display that scrolls text received over Wi-Fi. You'll write ESP32 code to subscribe to an MQTT topic and update the display in real time. When you send a message via your phone or a simple web app, it appears instantly on the matrix.
What You'll Learn
- Interface MAX7219 LED matrices with SPI on ESP32
- Connect to Wi-Fi and subscribe to MQTT topics
- Program scrolling text animations in C/C++ (Arduino IDE)
- Debug IoT circuits and live message delivery
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| MAX7219 8x8 Matrix | 2 |
| 100nF Caps | 5 |
| 10�F Caps | 2 |
| M-M Wires | 20 |
| M-F Wires | 15 |
| Micro USB Cable | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for CBSE Class 11-12 students exploring IoT in their computer science projects, B.Tech ECE/EEE freshmen building a mini-project for their first semester, or ATL Tinkering Lab mentors guiding students through real-world IoT applications. Great for Smart India Hackathon participants needing a working display module.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to chat with our AI companion trained on this kit; you can also send a photo of your wiring via WhatsApp for human backup.
Do I need to set up an MQTT broker myself?
No, we'll guide you through using a free public broker or setting up a lightweight broker on your laptop in under 5 minutes.
Can I display my own custom messages from the internet?
Absolutely. Once connected to Wi-Fi and an MQTT topic, any device on the same broker can publish text - your phone, a Raspberry Pi, or a web dashboard.
What if I want a larger display with more matrices?
The kit includes two MAX7219 modules; you can easily daisy-chain up to 8 modules with the same SPI pins, and we show you how to modify the code.
ESP32 drives 8x8 MAX7219 LED matrix over SPI. Shows scrolling text received from MQTT topic.
What's in this kit

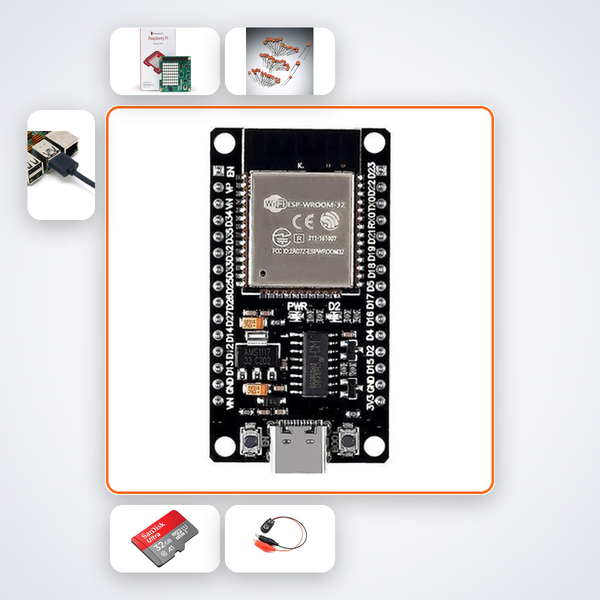

- ESP32 Dev Board
- MAX7219 8x8 Matrix x2
- 100nF Caps x5
- 10�F Caps x2
- M-M Wires x20
- M-F Wires x15
- Micro USB Cable
