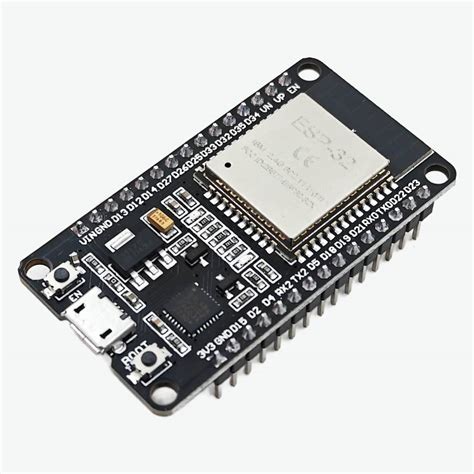

ESP32 30 Pin CP2102 Development Board with Wi-Fi and Bluetooth

The ESP32 30-pin development board with CP2102 USB‑UART chip integrates 2.4 GHz Wi‑Fi and Bluetooth 4.2/5.0. It is built for IoT prototypes, sensor networks, and low‑power applications that need reliable wireless connectivity. A dual‑core Tensilica LX6 processor drives this compact board, giving makers a ready‑to‑use platform for connected projects.

Key Specifications

Specification Value
Microcontroller ESP32‑WROOM‑32 (dual‑core LX6)
Wireless Wi‑Fi 802.11b/g/n, Bluetooth v4.2 BLE
Flash / SRAM 4 MB Flash, 520 KB SRAM
GPIO Pins 30 (ADC, DAC, UART, SPI, I2C, PWM)
USB‑UART CP2102, up to 921600 bps
Supply Voltage 5 V via USB; Vin 7‑12 V (onboard LDO)

What You Can Build With This

Compatibility

Works with Arduino IDE, PlatformIO, and Espressif IDF. Designed for 3.3 V logic sensors (DHT22, OLED, relay modules). Onboard 3.3 V regulator delivers up to 600 mA for external circuits. Standard pin‑spacing fits breadboards and common shields.

Wiring Notes

Always power peripherals from the 3.3 V pin. A single GPIO can source 40 mA, but keep the total draw under the regulator limit. Default serial pins are TX (GPIO1) and RX (GPIO3); avoid loading them during upload.

Is this compatible with Arduino IDE?

Yes. Install the ESP32 board package via Boards Manager, select “ESP32 Dev Module”, and choose the appropriate partition scheme. The CP2102 driver must be installed on your computer for uploading code.

Can I power this board with a 18650 battery?

The board runs on 3.3 V logic but needs a regulated 5 V supply. A 3.7 V 18650 cell can be boosted to 5 V with a step‑up module and connected to the 5 V pin. Direct connection to 3.3 V may cause brown‑outs.

What comes inside the box?

You receive the ESP32 development board only. No USB cable, headers, or sensors are included.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Pinout, specs and project ideas on Soldr →

Shipping Information

  • Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
  • COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
  • Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location

Returns & Warranty

  • 7-Day Return: Manufacturing defects only (approval required)
  • Warranty: 7 days from delivery
  • Non-Returnable: Batteries, consumables, cut wires, clearance items

View complete shipping policy →

View complete returns policy →

The official datasheet / documentation for this part:

View Datasheet

Pinout

PinFunction
GPIO2digital, adc2, touch, strapping, boot, output, onboard led some boards
GPIO4digital, adc2, touch, pwm, output
GPIO5digital, pwm, spi cs vspi, strapping, output
GPIO12digital, adc2, touch, strapping, output
GPIO13digital, adc2, touch, pwm, output
GPIO14digital, adc2, touch, pwm, output
GPIO15digital, adc2, touch, strapping, output
GPIO16digital, pwm, output
GPIO17digital, pwm, output
GPIO18digital, pwm, spi sck vspi, output
GPIO19digital, pwm, spi miso vspi, output
GPIO21digital, pwm, i2c sda, output
GPIO22digital, pwm, i2c scl, output
GPIO23digital, pwm, spi mosi vspi, output
GPIO25digital, adc2, dac1, pwm, output
GPIO26digital, adc2, dac2, pwm, output
GPIO27digital, adc2, touch, pwm, output
GPIO32digital, adc1, touch, pwm, output
GPIO33digital, adc1, touch, pwm, output
GPIO34digital, adc1, input only
GPIO35digital, adc1, input only
GPIO36digital, adc1, input only, sensor vp
GPIO39digital, adc1, input only, sensor vn
GPIO1digital, uart0 tx
GPIO3digital, uart0 rx

I2C: SDA GPIO21, SCL GPIO22

Boot pins — avoid for buttons/pull-ups: GPIO0, GPIO2, GPIO5, GPIO12, GPIO15

Input only: GPIO34, GPIO35, GPIO36, GPIO39
