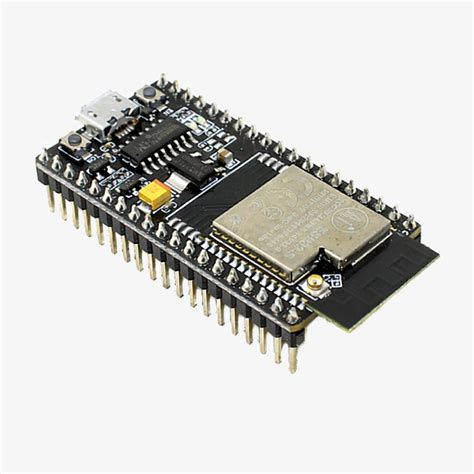

Ai-Thinker NodeMCU-32S ESP32 Development Board (IPEX Version)
The NodeMCU-32S by Ai-Thinker is an ESP32-based development board with an IPEX antenna connector for external antenna support, offering improved range and signal quality over PCB antenna variants. It integrates Wi-Fi 802.11 b/g/n and Bluetooth 4.2/BLE on a breadboard-friendly module with USB-to-serial programming. Designed for IoT and wireless prototyping, this board delivers dual-core processing at up to 240 MHz, 4MB flash, and extensive GPIO for sensor and actuator projects.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ESP32-D0WDQ6 (dual-core Xtensa LX6) |
| SRAM | 520 KB |
| Flash | 4 MB (external SPI) |
| Wireless | Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 4.2/BLE |
| Antenna | IPEX connector (external antenna); on-board ceramic antenna also available |
| Operating Voltage | 3.3V logic; 5V via micro USB or Vin pin |
What You Can Build With This
- Wi-Fi weather station uploading data to cloud services
- Bluetooth proximity beacon for indoor positioning
- Home automation hub controlling relays via MQTT
- Portable data logger with SD card and sensor shield
Compatibility
Fully compatible with Arduino IDE and MicroPython firmware. The board works with any 3.3V-level I2C, SPI, or UART peripherals. It pairs easily with common sensors like DHT22, BME280, or ultrasonic modules. The on-board USB-to-serial (CP2102) allows direct programming from any computer.
Wiring Notes
Power the board via micro-USB (5V) or apply 5–12V to the Vin pin (onboard regulator provides 3.3V). All GPIOs operate at 3.3V—do not exceed this level to avoid damage. The EN pin is pulled high; connect to GND to reset. For the IPEX connector, attach an appropriate 2.4 GHz external antenna for extended range.
Is this compatible with Arduino IDE?
Yes, install the ESP32 board package via Boards Manager, then select "NodeMCU-32S" as the board. No extra configuration needed.
Do I need an external antenna for this IPEX version?
An external antenna is recommended for better range, but the board has a small on-board ceramic antenna that works without one for short-range prototyping.
Can I power it with a 9V battery?
Yes, connect a 9V battery to the Vin pin (accepts 5–12V). The onboard regulator provides the necessary 3.3V for the ESP32.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
- COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
- Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
The official datasheet / documentation for this part:
View DatasheetPinout
| Pin | Function |
|---|---|
| GPIO0 | digital, adc2, touch, strapping, boot, output |
| GPIO2 | digital, adc2, touch, strapping, boot, output, onboard led some boards |
| GPIO4 | digital, adc2, touch, pwm, output |
| GPIO5 | digital, pwm, spi cs vspi, strapping, output |
| GPIO12 | digital, adc2, touch, strapping, output |
| GPIO13 | digital, adc2, touch, pwm, output |
| GPIO14 | digital, adc2, touch, pwm, output |
| GPIO15 | digital, adc2, touch, strapping, output |
| GPIO16 | digital, pwm, output |
| GPIO17 | digital, pwm, output |
| GPIO18 | digital, pwm, spi sck vspi, output |
| GPIO19 | digital, pwm, spi miso vspi, output |
| GPIO21 | digital, pwm, i2c sda, output |
| GPIO22 | digital, pwm, i2c scl, output |
| GPIO23 | digital, pwm, spi mosi vspi, output |
| GPIO25 | digital, adc2, dac1, pwm, output |
| GPIO26 | digital, adc2, dac2, pwm, output |
| GPIO27 | digital, adc2, touch, pwm, output |
| GPIO32 | digital, adc1, touch, pwm, output |
| GPIO33 | digital, adc1, touch, pwm, output |
| GPIO34 | digital, adc1, input only |
| GPIO35 | digital, adc1, input only |
| GPIO36 | digital, adc1, input only, sensor vp |
| GPIO39 | digital, adc1, input only, sensor vn |
| GPIO1 | digital, uart0 tx |
| GPIO3 | digital, uart0 rx |
I2C: SDA GPIO21, SCL GPIO22
Boot pins — avoid for buttons/pull-ups: GPIO0, GPIO2, GPIO5, GPIO12, GPIO15
Input only: GPIO34, GPIO35, GPIO36, GPIO39
