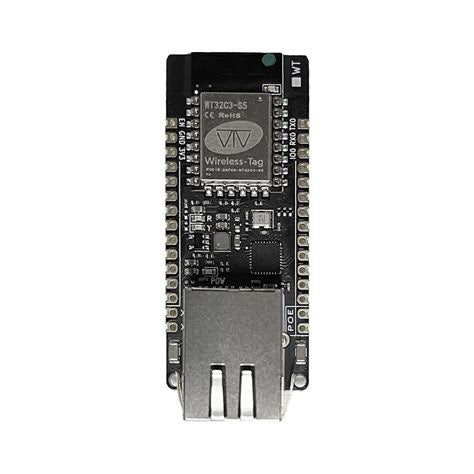

WT32-ETH01 EVO ESP32 Ethernet Development Board
WT32-ETH01 EVO ESP32 Ethernet Development Board with PoE
The WT32-ETH01 EVO is an ESP32 development board that integrates 10/100M Ethernet, WiFi, and BLE into a compact form factor. It is designed for IoT applications requiring reliable wired network connectivity, combining the flexibility of wireless with the stability of Ethernet. The board simplifies building connected devices for home automation, industrial monitoring, and smart gadgets.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ESP32-D0WDQ6 |
| Ethernet | 10/100 Mbps RJ45 with PoE support (optional module) |
| WiFi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | BLE 4.2 |
| Flash Memory | 4 MB |
| Input Power | 5 V via micro USB or PoE |
What You Can Build With This
- IoT temperature and humidity logger with cloud dashboard
- Ethernet-connected smart relay for home automation
- Industrial sensor node with Modbus TCP communication
- Networked LED display or status indicator
Compatibility
The WT32-ETH01 EVO works with Arduino IDE, ESP-IDF, and MicroPython. It pairs seamlessly with common sensors, actuators, and can bridge WiFi to Ethernet networks. The board operates at 3.3 V logic, so use level shifters for 5 V components.
Wiring Notes
Power via micro USB (5 V) or through the RJ45 jack with an external PoE module. Connect Ethernet cable directly to your router or switch. GPIO pins are limited; avoid drawing more than 12 mA per pin. The onboard LED is on GPIO2.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino IDE?
Yes, the WT32-ETH01 EVO can be programmed using the Arduino IDE with the ESP32 board package. Select the "ESP32 Dev Module" board setting.
Can I power this board using Power over Ethernet (PoE)?
The board supports PoE with an optional PoE module connected to the Ethernet jack. It can also be powered via the micro USB port.
What WiFi range can I expect from this board?
The onboard PCB antenna provides a typical indoor range of up to 30 meters, depending on obstacles and interference.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
