ESP32-DEVKITC Development Board (Black) – WiFi Bluetooth Module
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

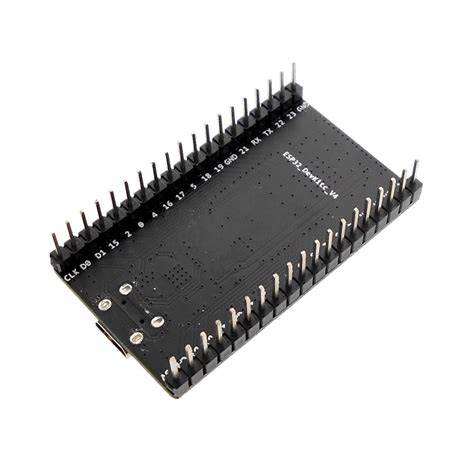

ESP32-DEVKITC Development Board (Black)
The ESP32-DEVKITC is a development board based on the ESP32-WROOM-32 module. It provides a dual-core processor, WiFi, and Bluetooth connectivity in a compact form factor. This board is suitable for prototyping IoT devices, smart home systems, and wireless sensor networks.
Key Specifications
| Specification | Value |
|---|---|
| Chipset | ESP32-D0WDQ6 (dual-core Tensilica LX6) |
| Flash Memory | 4 MB |
| SRAM | 520 KB |
| WiFi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | v4.2 BR/EDR + BLE |
| Input Voltage | 5V (micro USB) / 3.3V operating |
What You Can Build With This
- WiFi weather station with temperature and humidity sensors
- Smart home light or appliance controller via relays
- Bluetooth proximity beacon for indoor tracking
- WiFi camera with OV2640 for remote monitoring
Compatibility
This board works with Arduino IDE, Espressif IDF, and MicroPython. It pairs seamlessly with 3.3V sensors such as DHT22, OLED displays, relay modules, and motor drivers. Most Arduino libraries for ESP32 are supported out of the box.
Wiring Notes
Power and program the board through the micro USB port. All GPIOs are 3.3V tolerant—never apply 5V directly. For external power, connect a regulated 3.3V supply to the 3.3V pin or 5V to the VIN pin to use the onboard regulator.
Is this compatible with Arduino IDE?
Yes, install the ESP32 board package in Arduino IDE and select “ESP32 Dev Module” as the board.
Does the board include a programmer?
Yes, a CP2102 USB-to-UART chip is built in, so no external programmer is needed.
What is the flash memory capacity?
The onboard ESP32-WROOM-32 module has 4 MB of flash memory.
