ESP32 Capacitive Touch Piano Kit with ESP32
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
ESP32 Capacitive Touch Piano Kit with ESP32 — a beginner-level kit.
ESP32 Capacitive Touch Piano Kit with ESP32 — Make Music by Touch
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Turn a simple breadboard into an eight-note musical instrument that responds to the lightest touch. Instead of buttons or keys, you use copper foil pads connected to the ESP32's built-in touch sensors. This kit turns learning about microcontrollers into a playful, hands-on experience that ends with a real working piano. With no prior coding required, the included code is ready to upload, so you can start playing music right away.
What You'll Build
You'll assemble a capacitive touch piano with eight notes arranged in a scale. When you touch a copper pad, the corresponding note plays through the passive buzzer. The system is sensitive enough to detect a fingertip, so anyone can play it straight away. Once built, you can play melodies, reprogram the note frequencies, or even turn it into a sound effects machine that reacts to your touch.
What You'll Learn
- How the ESP32's capacitive touch pins detect human touch without any physical button
- Wiring a passive buzzer to produce different frequencies via PWM signals
- Reading analog-like touch values and mapping them to musical notes in code
- Constructing a stable circuit on a 400-point breadboard and debugging connections

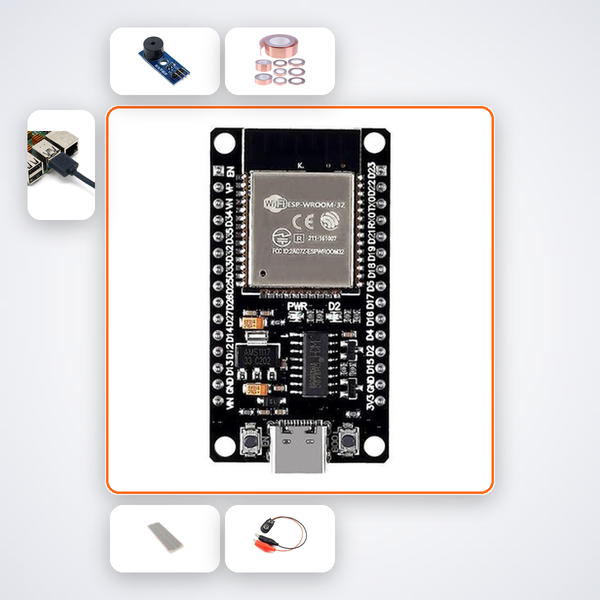

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | x1 |
| Passive Buzzer | x1 |
| Copper Foil Tape | x8 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
| Micro USB Cable | x1 |
Who This Kit Is For
This kit is designed for anyone who wants to explore electronics and music. It also suits ATL Tinkering Labs in Indian schools, a first technology project at home, and students taking part in CBSE science exhibitions. First-year B.Tech students in ECE can also use it to understand capacitive sensing and PWM audio generation without complex tools. Smart India Hackathon teams often use similar touch-interface modules for rapid prototyping.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Reach out via the AI companion on the QR code — it knows every wire and step. Real-time human support is also available on WhatsApp for especially tricky moments.
Can I change the musical notes to play my own tunes?
Yes. The ESP32 can be reprogrammed using Arduino IDE. Adjust the frequency values in the code to map each touch pad to any note or even program it to play simple melodies automatically.
What if the copper tape loses stickiness over time?
The copper foil tape has a strong adhesive, but if it peels, press it back down or replace it with a fresh piece. The conductive surface still works as long as the wire connection is secure.
How do I power the piano after building?
Use the included Micro USB cable with any standard USB charger, power bank, or laptop. The ESP32 runs from 5V USB power, so the piano is portable.
Eight copper foil touch pads connected to ESP32 touch pins play musical notes on passive buzzer.
What's in this kit
- ESP32 Dev Board
- Passive Buzzer
- Copper Foil Tape x8
- 400-pt Breadboard
- M-M Wires x20
- Micro USB Cable
