HC-SR04 Ultrasonic Sensor Module 5V - Distance 2cm-400cm
HC-SR04 Ultrasonic Distance Sensor Module – 2cm to 400cm Range

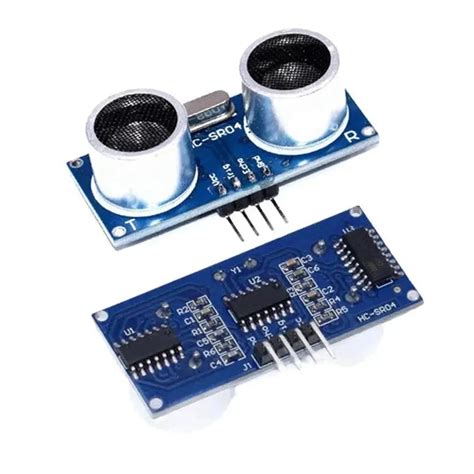

The HC-SR04 ultrasonic sensor module measures distance by emitting 40kHz sound pulses and receiving the echo. It detects objects from 2cm up to 400cm away with <15° measuring angle, making it suitable for proximity sensing and distance measurement in robotics, automation, and DIY projects. The compact module operates at 5V and uses only two GPIO pins for trigger and echo, ensuring straightforward microcontroller integration.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 5V DC |
| Operating Current | 15mA |
| Frequency | 40kHz |
| Measurement Range | 2cm – 400cm |
| Measuring Angle | <15° |
| Dimensions | 45mm × 20mm × 15mm |
What You Can Build With This
- Smart distance alert system for parking assistance
- Automatic hand sanitizer dispenser
- Water level indicator for overhead tanks
- DIY robot obstacle avoidance system
Compatibility
Works with Arduino (Uno, Nano, Mega), Raspberry Pi (requires level shifter for 3.3V logic on Echo pin), ESP32, and any microcontroller with GPIO pins. The module needs a 5V supply; the Echo pin outputs a 5V signal, so use a voltage divider when connecting to 3.3V boards.
Wiring Notes
Connect VCC to 5V, GND to ground, Trig to a digital output pin, and Echo to a digital input pin. For stable readings, add a 10µF capacitor across VCC and GND. When using with 3.3V microcontrollers, attach a voltage divider (10kΩ / 20kΩ) on the Echo line to step down to safe levels.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi?
Yes, but the Echo pin outputs 5V, so a voltage divider (10k and 20k resistors) is needed to reduce it to 3.3V for safe connection.
What is the maximum range outdoors?
The rated 400cm range is under ideal indoor conditions; outdoor performance may be reduced due to wind, temperature, and acoustic noise.
Does it come with connecting wires?
The module is sold standalone. Standard 2.54mm pitch header pins can be used for connections; some packages may include header pins.
