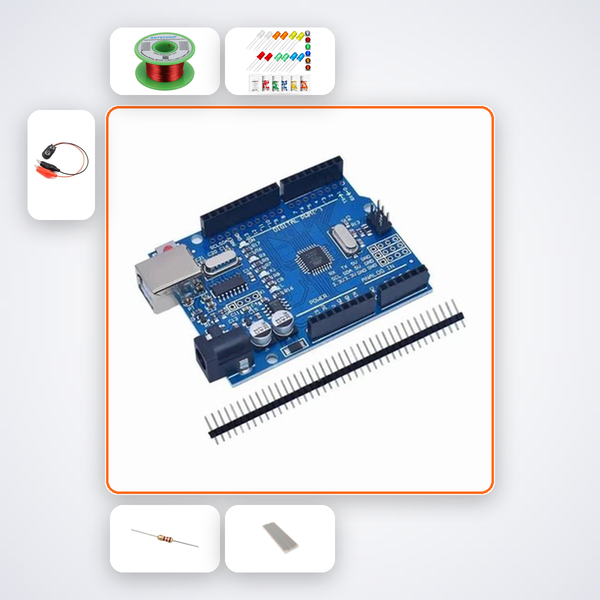

Water Level Indicator Kit with Arduino Uno & LED – Build a Home Tank Monitor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine a line of LEDs on your wall that tells you exactly how full your overhead water tank is—no more climbing up to check. With this kit, you'll wire five resistive probes that measure water height and light up graduated LEDs, from empty to full. Built around the beginner-friendly Arduino Uno, the project introduces real-world home automation and sensor interfacing in just a few hours.

What You'll Build

You'll assemble a functional water level indicator that mimics a home tank monitor. Five copper wire probes placed at increasing heights in a small water container (not included) detect water presence through resistance changes. The Arduino reads these values and turns on the corresponding LEDs—red for low level, yellow for mid, green for full—giving you a visual readout just like a real tank gauge. You can later adapt it to monitor sumps, overhead tanks, or even plant watering systems.

What You'll Learn

• How resistive water level sensors work and how to design electrode-based probes
• Wiring simple voltage divider circuits to convert water resistance into digital readings
• Programming an Arduino Uno to read multiple analog inputs and control outputs
• Practical debugging of sensor circuits and interpreting serial monitor data

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is ideal for young learners in CBSE Class 7–10 exploring STEM, ATL Tinkering Lab projects, and beginner Arduino hobbyists. It suits B.Tech ECE/EEE students prototyping simple sensor systems and anyone curious about home automation basics. Even parents can build it alongside children aged 8+ under supervision, making it a great family weekend project.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
