JST-PH 2-Pin Connector Pigtail Pair (Male + Female) | Compoden
Use this male + female JST-PH 2.0mm pigtail pair to give any small battery or board a clean, polarised, detachable power connection — the same connector family used by most small LiPo cells and many sensor boards. Solder once, then connect and disconnect without strain on the cells. Commonly used for 1S LiPo hookups, battery swaps in wearables, and keeping a charger lead permanently on the pack. Not suitable for loads above ~2A (connector rating) or for 18650 motor packs. Key specs: JST-PH 2.0mm pitch, 2-pin, male + female with ~100mm 24AWG leads, red/black. Alternative: JST-XH for balance leads; XT60 for high-current packs.

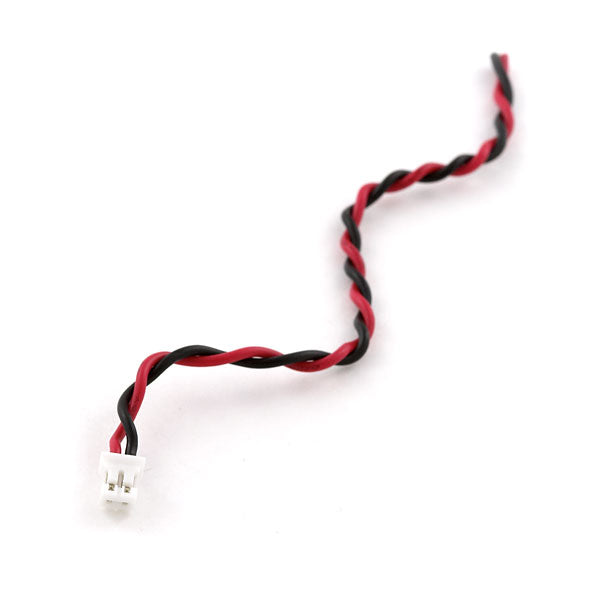

Product photo: SparkFun Electronics, CC BY-SA 3.0, via Wikimedia Commons.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
