Wave Energy Converter Monitor Kit with Arduino Mega + Sensor
Wave Energy Converter Monitor – Real-Time Efficiency Logger with Arduino Mega
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a linear generator bobbing in wave tanks or tidal simulators, directly producing AC voltage. This kit turns that raw motion into precise efficiency metrics—measuring AC output, rectifying it to DC, and logging every watt-hour to an SD card. It’s built for the serious energy research project, where you need proof of conversion efficiency under controlled conditions.
What You'll Build
You will assemble a fully enclosed monitoring system for a wave energy converter. The ZMPT101B captures raw AC voltage, the diode bridge rectifies it, and the INA219 sensors track both the incoming AC power (post-rectification) and the final DC output. An A3144 Hall sensor counts generator strokes, while the DS3231 RTC timestamps every data point saved to the microSD card. The OLED displays live voltage, current, power, and efficiency percentages in the field.
What You'll Learn
- Measure AC voltage and calculate apparent power using the ZMPT101B module
- Design a full-wave rectifier with 1N4007 diodes and filter it using electrolytic capacitors
- Interface two INA219 high-side current sensors to log both rectified AC and DC parameters
- Integrate a DS3231 real-time clock and microSD module to create time-stamped efficiency logs
Kit Contents
| Component | Quantity |
|---|---|

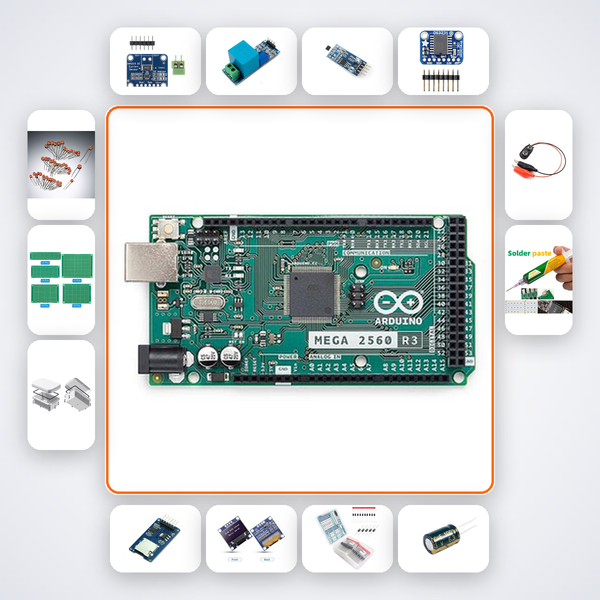

| Arduino Mega 2560 | x1 |
| INA219 | x2 |
| ZMPT101B | x1 |
| A3144 Hall Sensor | x1 |
| DS3231 RTC | x1 |
| MicroSD Module | x1 |
| 0.96in OLED | x1 |
| 1N4007 Diode | x10 |
| 100µF 50V Capacitor | x4 |
| 100nF Capacitor | x10 |
| PCB Prototype Board | x3 |
| Waterproof Enclosure | x1 |
| 9V Battery Snap | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit serves B.Tech ECE and EEE students tackling final-year projects in renewable energy, as well as researchers prototyping wave energy converters at NITs, IITs, and private labs. Smart India Hackathon teams focused on clean energy will find the ready-to-log hardware cuts days off prototyping. The build demands prior experience with Arduino, soldering, and basic AC/DC circuit design.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the QR code to chat with the AI companion, which knows this exact circuit, or message us on WhatsApp—we respond within hours on working days.
Can I use this with a different wave generator design?
Yes, the monitoring system is generic; you can connect any single-phase AC source up to 250V, and the Hall sensor can adapt to different stroke mechanisms.
How do I calibrate the ZMPT101B for accurate readings?
The AI companion provides a step-by-step calibration sketch using a known AC source; it guides you through adjusting the scaling factor in code.
Is the waterproof enclosure rated for outdoor use?
The enclosure is IP65 rated for splash and rain, suitable for field testing near water bodies, but not for full submersion.
Linear generator driven by wave motion. INA219 measures AC output and rectified DC. Efficiency logged to SD.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
