MEGA 2560 R3 Development Board – Arduino Compatible

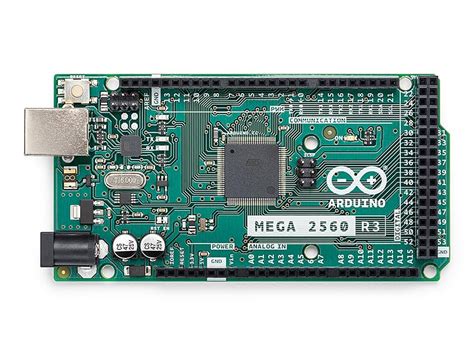

The MEGA 2560 R3 is a microcontroller board built around the ATmega2560. It provides 54 digital I/O pins, 16 analog inputs, and 4 hardware serial ports, giving you the memory and pin count needed for demanding embedded projects. This board is fully compatible with the Arduino IDE and standard shields.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Digital I/O Pins | 54 (15 PWM) |
| Analog Input Pins | 16 |
| Flash Memory | 256 KB |
| Clock Speed | 16 MHz |
What You Can Build With This
- 3D printer controller with multiple stepper motors
- Home automation hub driving relay and sensor modules
- Large LED matrix display manager
- Multi-sensor environmental data logger
Compatibility
The board works directly with the Arduino IDE (select ‘Arduino Mega 2560’). Its 5V logic and standard Mega footprint accept most Arduino shields. It pairs well with relay boards, motor drivers, LCD keypad shields, and any module needing abundant I/O.
Wiring Notes
Use a USB cable for programming and basic power. For external supplies, connect 7–12V to the barrel jack or VIN pin. Each I/O pin can source up to 40 mA; keep total current draw below 200 mA to protect the voltage regulator.
Is this compatible with the Arduino IDE?
Yes, it is fully recognized. Choose ‘Arduino Mega 2560’ from the Boards menu to start programming.
What is the maximum current per I/O pin?
40 mA per pin, but the total for all pins should stay under 200 mA to avoid damage.
Can I power the board through USB only?
Yes, USB supplies 5V directly to the board, suitable for programming and light loads. For higher current applications, use a 7–12V external adapter.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
- COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
- Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
The official datasheet / documentation for this part:
View DatasheetPinout
| Pin | Function |
|---|---|
| 0 | digital, uart0 rx |
| 1 | digital, uart0 tx |
| 2 | digital, pwm, interrupt |
| 3 | digital, pwm, interrupt |
| 4 | digital, pwm |
| 5 | digital, pwm |
| 6 | digital, pwm |
| 7 | digital, pwm |
| 8 | digital, pwm |
| 9 | digital, pwm |
| 10 | digital, pwm |
| 11 | digital, pwm |
| 12 | digital, pwm |
| 13 | digital, pwm, onboard led |
| 14 | digital, uart3 tx |
| 15 | digital, uart3 rx |
| 16 | digital, uart2 tx |
| 17 | digital, uart2 rx |
| 18 | digital, uart1 tx, interrupt |
| 19 | digital, uart1 rx, interrupt |
| 20 | digital, i2c sda, interrupt |
| 21 | digital, i2c scl, interrupt |
| 22 | digital |
| 23 | digital |
| 24 | digital |
| 25 | digital |
| 26 | digital |
| 27 | digital |
| 28 | digital |
| 29 | digital |
| 30 | digital |
| 31 | digital |
| 32 | digital |
| 33 | digital |
| 34 | digital |
| 35 | digital |
| 36 | digital |
| 37 | digital |
| 38 | digital |
| 39 | digital |
| 40 | digital |
| 41 | digital |
| 42 | digital |
| 43 | digital |
| 44 | digital, pwm |
| 45 | digital, pwm |
| 46 | digital, pwm |
| 47 | digital |
| 48 | digital |
| 49 | digital |
| 50 | digital, spi miso |
| 51 | digital, spi mosi |
| 52 | digital, spi sck |
| 53 | digital, spi ss |
| A0 | analog, digital |
| A1 | analog, digital |
| A2 | analog, digital |
| A3 | analog, digital |
| A4 | analog, digital |
| A5 | analog, digital |
| A6 | analog, digital |
| A7 | analog, digital |
| A8 | analog, digital |
| A9 | analog, digital |
| A10 | analog, digital |
| A11 | analog, digital |
| A12 | analog, digital |
| A13 | analog, digital |
| A14 | analog, digital |
| A15 | analog, digital |
I2C: SDA 20, SCL 21
