Large 64x32 LED Matrix Billboard Kit with Arduino Mega + LED

SKU: CDN-KIT-0922-CL-SLD Brand: Compoden Category: Electronics > Display & Art > Project Kits
Rs. 1,060.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Large 64x32 LED Matrix Billboard Kit with Arduino Mega + LED — an advanced-level kit.

Large 64x32 Full-Colour LED Billboard with Arduino Mega – Scroll Messages & Graphics

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 5-6 hrs Skill: Full-Colour LED Matrix Control

Turn two HUB75 panels into a vivid 64x32 scrolling billboard that displays custom text, animations, or pixel art. Whether you need a display for a college tech fest, Smart India Hackathon demo, or a permanent desk sign, this kit gives you the parts and guidance to build a fully-functional full-colour matrix. You will solder, wire, and program the system from scratch, mastering both hardware and software integration in one weekend project.

What You'll Build

You will assemble a 64x32 LED display that pulls in scrolling messages, simple animations, or your own bitmap graphics. The combined dual-panel setup is bright enough for indoor presentations, crisp enough to read across a classroom, and compact enough to mount on a wall or keep on your lab bench. Once built, you can repurpose it as a live scoreboard, event banner, or dynamic notification board.

What You'll Learn

  • Chain two HUB75 LED matrix panels with precise power decoupling to prevent flicker and ghosting.
  • Solder prototype boards with multiple wire-harness connections, building reliable signal paths for high-speed parallel data.
  • Program the Arduino Mega’s hardware timers to drive 64x32 pixels at smooth frame rates without external libraries.
  • Design custom bitmap fonts and scrolling animation sequences in Arduino C++ for full-colour text effects.

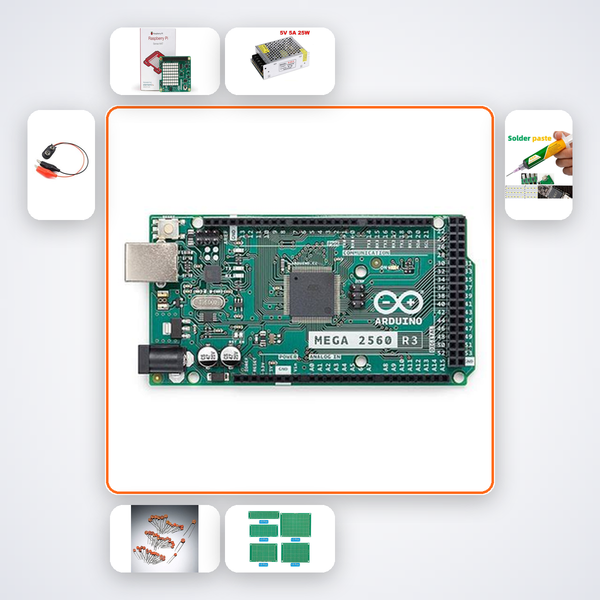

Kit Contents

Component Quantity
Arduino Mega 2560 1
32x16 HUB75 LED Matrix 2
5V 5A PSU 1
100nF Caps 10
PCB Prototype Board 2
M-M Wires 30
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This advanced kit is designed for B.Tech ECE, EEE, or CS students who want a substantial embedded project that combines soldering, hardware interfaces, and real-time programming. It is an ideal centerpiece for Smart India Hackathon prototypes, final-year display projects, or tech-fest exhibitions at IITs, NITs, VIT, and BITS. Hobbyists who can handle a soldering iron and have basic Arduino knowledge will also find it a rewarding weekend build.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to open the AI companion trained on this exact billboard kit. It walks you through every solder joint and line of code. For anything that still feels unclear, our team replies on WhatsApp.

Can I use this display for a shop signage or college notice board?

Yes. The finished 64x32 matrix is bright and readable across a room. You can program it to scroll custom text, show QR codes, or cycle through static images. Just supply 5V power and connect to a computer for updates.

Do I need prior soldering experience?

You will solder two prototype boards and many wire connections—basic soldering skills are required. If you have assembled an Arduino on a perfboard before, you are ready. The AI companion includes close-up photos and soldering tips to help.

What programming knowledge is expected?

You’ll write Arduino C++ code that uses the Mega’s hardware timers to drive the HUB75 interface. The kit includes a working code template and the AI companion explains every function. Basic understanding of loops, arrays, and bitwise operations will let you modify animations confidently.

Two 32x16 HUB75 LED matrix panels driven by Arduino Mega display scrolling text and graphics at full colour.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
