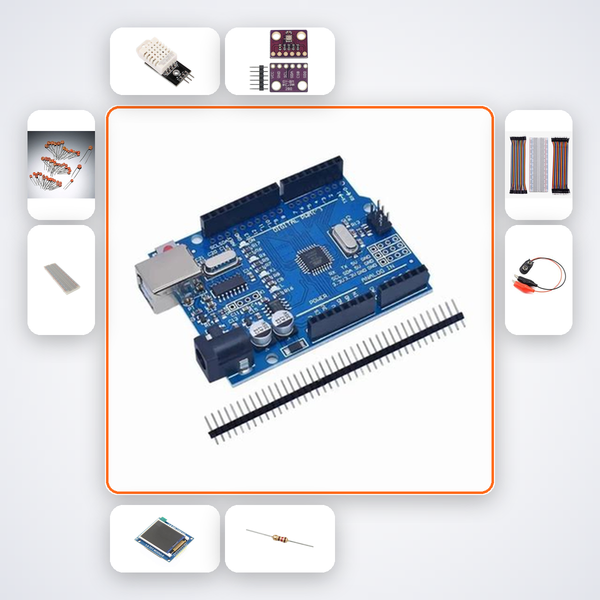

Build Your Own HVAC Performance Monitor with Arduino Uno, DHT22, and Animated TFT Display

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine holding a compact device that reads your room’s temperature, humidity, and atmospheric pressure, then paints a miniature weather dashboard with animated suns, drifting clouds, or raindrops on a bright TFT screen. This kit transforms a microcontroller into an HVAC performance monitor that turns invisible environmental data into an interactive visual story — perfect for checking if your air conditioner or heater is actually doing its job.

What You'll Build

You will assemble a standalone environmental monitor powered by Arduino Uno. It continuously pulls precise readings from a DHT22 (temp and humidity) and a BMP280 (barometric pressure), then interprets current conditions and renders animated weather icons — sun, cloud, rain — on the 1.8-inch TFT display. The final unit fits on your desk, in a lab, or even inside an HVAC dashboard to visually verify system performance at a glance.

What You'll Learn

• How to interface multiple I2C/1-Wire sensors on a single Arduino bus
• Reading and calibrating humidity, temperature, and pressure values from DHT22 and BMP280
• Driving a TFT ST7735 display and drawing dynamic, animated weather icons
• Writing modular Arduino code that blends sensor polling, decision logic, and real‑time graphics

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This intermediate-level build is ideal for CBSE Class 11-12 students working on physics or computer science practicals, B.Tech ECE/EEE undergraduates prototyping HVAC-related semester projects, and participants of the Smart India Hackathon who need a ready-to-deploy indoor climate monitor. ATL Tinkering Lab mentors will find it a complete package for teaching sensor fusion and display programming in a single session.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
