Analogue Gauge Animation on TFT Variant 20 Kit with Arduino Uno + MPU6050
Animate Realistic Analogue Gauges on TFT with Arduino Uno & MPU6050 — Full Project Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine tilting your hand and watching a polished analogue gauge needle sweep across a vibrant TFT screen in real time, just like an aircraft attitude indicator or automotive dashboard. This kit teaches you how to build that exact effect, using an MPU6050 sensor to read orientation and an Arduino Uno to render the needle with fluid, jitter‑free interpolation so the movement feels authentic and lag‑free. You’ll master the fusion of motion sensing and display art while assembling a portable, battery‑powered demonstration.
What You'll Build
A working digital gauge display that reads tilt angles from the MPU6050 and translates them into smooth, realistic needle movement on a 1.8‑inch TFT. Assemble the circuit on a breadboard, upload the pre‑calibrated code, and watch the needle react instantly as you rotate the board — a showcase project that brings dashboard instruments to life.
What You'll Learn
- Pulling raw pitch and roll data from the MPU6050 sensor via I2C communication
- Rendering a custom gauge face and a dynamic needle on the ST7735 TFT display
- Applying linear interpolation and damping algorithms to smooth sensor readings
- Packaging a portable standalone project powered by a 9V battery

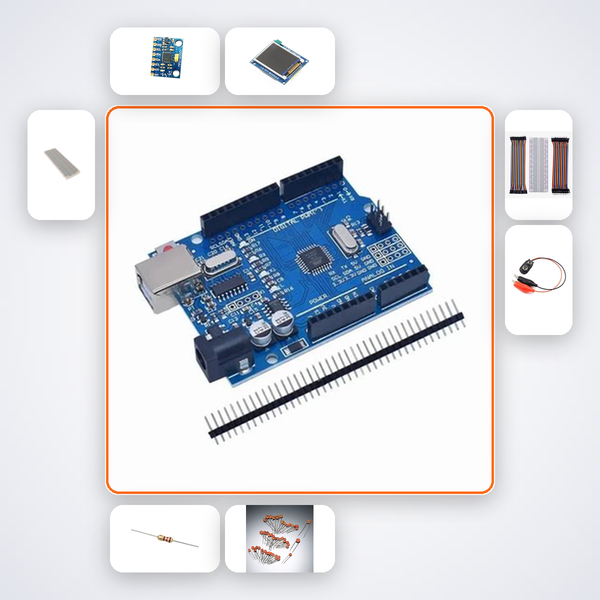

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | ×1 |
| MPU6050 | ×1 |
| 1.8in TFT ST7735 | ×1 |
| 4.7kΩ Resistors | ×5 |
| 100nF Capacitors | ×5 |
| 400-pt Breadboard | ×1 |
| M-M Jumper Wires | ×20 |
| 9V Battery Snap | ×1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is ideal for CBSE Class 11–12 students exploring sensor‑based graphics for physics or computer science projects, first‑year B.Tech ECE/EEE students needing a quick but impressive mini‑project, and ATL Tinkering Lab members who want to prototype motion‑sensitive displays. It’s also a practical build for Smart India Hackathon teams working on automotive or aerospace dashboards.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion, accessible through the included QR code, walks you through every connection and line of code. If you still need help, message us on WhatsApp for direct human support.
Do I need to solder anything?
No. All components plug directly into the included breadboard using jumper wires — no soldering required.
Can I modify the gauge appearance?
Absolutely. The Arduino sketch includes commented sections to change the gauge face layout, needle length, colors, and animation damping curves.
Is the kit compatible with other Arduino boards?
The code is written for Arduino Uno R3. Other boards may work with minor pin adjustments; the AI companion can guide you through the changes.
MPU6050 tilt angle drives a rendered analogue gauge needle on TFT. Smooth interpolation for realistic feel.
What's in this kit
- Arduino Uno R3
- MPU6050
- 1.8in TFT ST7735
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
