Nursery Weather Icon Display Kit: Uno, DHT22, BMP280, TFT
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Nursery Weather Icon Display Kit: Uno, DHT22, BMP280, TFT — an intermediate-level kit.
Nursery Weather Icon Display Kit: Uno, DHT22, BMP280, TFT
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A nursery weather display: an Arduino Uno reads temperature and humidity (DHT22) and the pressure trend (BMP280) and draws animated icons on a 1.8-inch colour TFT, sun for settled weather and clouds or rain when the pressure falls, with the room readings below.

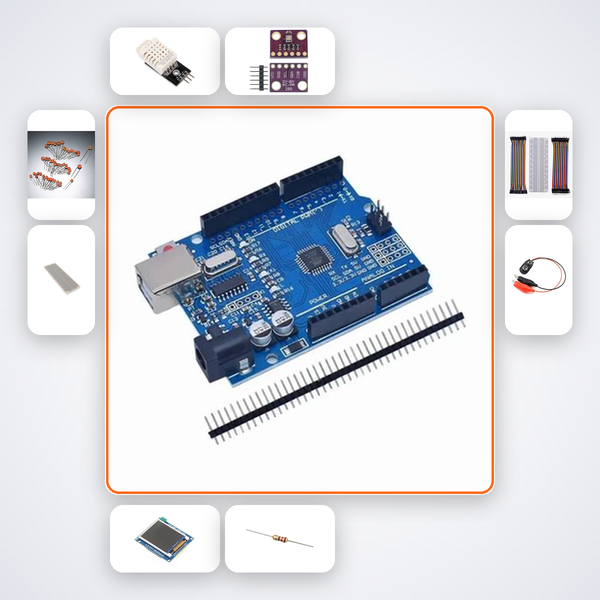

What's in the box
- Arduino Uno R3
- DHT22
- BMP280
- 1.8in TFT ST7735
- 4.7kΩ Resistors × 5
- 100nF Capacitors × 5
- 400-pt Breadboard
- Male-Male Jumper Wires × 20
- 9V Battery Snap
Power: 9V battery, not included.
Skill level: Beginner (2-3 hours, no soldering).
Frequently asked questions
Is it a baby monitor?
No. It shows room climate and a weather guess.
How does it guess the weather?
Falling pressure often means rain is coming.
You built that reassurance yourself, without writing a single line of code from scratch.
What You'll Build
A breadboard-based environmental display that reads temperature and humidity from the DHT22 and barometric pressure from the BMP280, then draws animated weather icons on the ST7735 TFT. The display switches dynamically: a smiling sun when conditions are comfortable, a drifting cloud if humidity rises, and raindrops if temperature or pressure trends suggest discomfort. The final build includes a sturdy 9V battery snap, making it portable enough to place near the crib or on a shelf.
What You'll Learn
- Interface two I2C sensors (DHT22 and BMP280) on a single Arduino Uno and merge their data streams
- Program pixel-level graphics on an SPI-driven ST7735 TFT, including custom animated icons
- Translate sensor thresholds into visual logic — temperature, humidity and pressure combinations drive distinct display states
- Work with pull-up resistors and decoupling capacitors to stabilise sensor readings on a breadboard
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| DHT22 | 1 |
| BMP280 | 1 |
| 1.8in TFT ST7735 | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| 400-pt Breadboard | 1 |
| Male-Male Jumper Wires | 20 |
| 9V Battery Snap | 1 |
Who This Kit Is For
Ideal for CBSE students building a practical sensor dashboard as a school project, or for ATL Tinkering Lab entries that need a tangible health-tech prototype. B.Tech ECE/EEE first-year students will find it a solid introduction to multi-sensor data fusion and SPI displays. Even participants preparing for the Smart India Hackathon can use this as a rapid environmental monitoring module. The intermediate level assumes you have uploaded a blink sketch before — we handle the sensor libraries and animation code.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code inside the box to open the AI companion; it walks you through wiring, code upload and icon calibration. You can also message us on WhatsApp with a photo and we’ll diagnose.
Can this monitor actually be used in a nursery?
Yes, the animated icons provide an instant visual cue for room comfort — sun for ideal, cloud for caution, rain for adjustment needed. It’s a DIY educational device, not a medical instrument.
Does the TFT show numbers or only icons?
Both. The display toggles between a full-screen icon and a data panel showing live temperature, humidity and pressure readings, so you get precise values when you need them.
Can I add a buzzer that sounds if conditions go out of range?
Absolutely, the Arduino sketch includes unused digital pins. The AI companion provides optional code snippets for adding a piezo buzzer (not included) that activates based on the same thresholds that trigger the rain icon.
