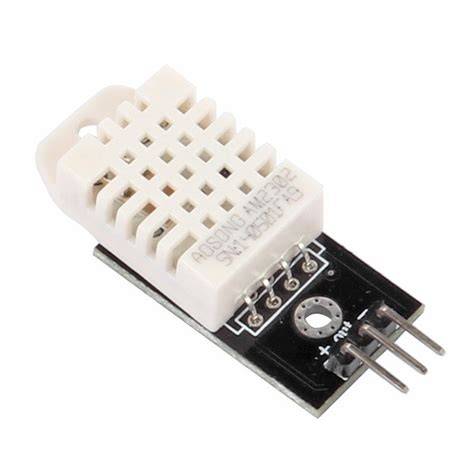

DHT22 Temperature and Humidity Sensor Module
The DHT22 (also known as AM2302) is a digital temperature and humidity sensor that outputs calibrated readings over a single-wire interface. It offers higher accuracy and a wider measurement range than the DHT11, making it suitable for projects that need reliable environmental monitoring.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 3.3V – 5.5V DC |
| Temperature Range | -40°C to +80°C |
| Temperature Accuracy | ±0.5°C |
| Humidity Range | 0 – 100% RH |
| Humidity Accuracy | ±2% RH (typical) |
| Sampling Rate | 0.5 Hz (every 2 seconds) |
What You Can Build With This
- Indoor weather station with LCD display
- Greenhouse or terrarium climate monitor
- Home automation thermostat and humidity logger
- Incubator or server room environmental alarm
Compatibility
The DHT22 works with any microcontroller that supports digital I/O, including Arduino Uno, Mega, Nano, ESP32, ESP8266, and Raspberry Pi. The module includes an onboard 4.7kΩ pull-up resistor, so you can connect it directly to a 3.3V or 5V logic board. Recommended libraries are the Adafruit DHT sensor library and the simple DHT22 library for Arduino.
Wiring Notes
Connect VCC to 3.3V–5V, GND to ground, and DATA to a digital pin. The module already has a pull-up, so no external resistor is needed. Avoid cables longer than 1 metre, and never request readings faster than once every 2 seconds to get valid data.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, the DHT22 works with all Arduino boards. Use the DHT sensor library by Adafruit on any digital pin.
What is the difference between DHT11 and DHT22?
The DHT22 has a much wider temperature range (-40°C to 80°C vs 0–50°C) and better accuracy (±0.5°C vs ±2°C). Humidity readings are also more precise with the DHT22.
Can I use it outdoors?
The bare module is not weatherproof. For outdoor use, place it in a weatherproof enclosure with ventilation to protect from rain and direct moisture.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
