Digital Etch-a-Sketch Kit with Arduino Uno + Rotary Encoder

SKU: CDN-KIT-0987-CL-SLD Brand: Compoden Category: Electronics > Display & Art > Project Kits
Rs. 1,240.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Digital Etch-a-Sketch Kit with Arduino Uno + Rotary Encoder — an advanced-level kit.

Recreate the Classic Etch-a-Sketch on Arduino with TFT Display and Dual Encoders

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 5-6 hrs Skill: Rotary Encoder Interfacing & TFT Graphics

Kit at a glance

What you build: A digital drawing toy that teaches two core skills: reading rotary encoders and drawing on a colour TFT. Turn one knob for left-right and the other for up-down to draw on a 2.4-inch ILI9341 screen, and press a button to shake the picture away.

What's in the box

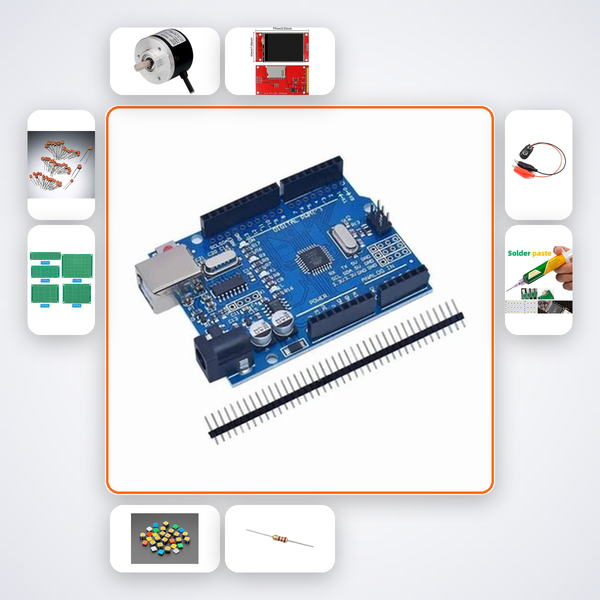

  • Arduino Uno R3
  • Rotary Encoder × 2
  • 2.4in TFT ILI9341
  • Tactile Button × 2
  • 10kΩ Resistors × 10
  • 100nF Caps × 5
  • PCB Prototype Board
  • 9V Battery Snap
  • Soldering Iron
  • Solder Wire

Power: 9V battery, not included.

Skill level: Advanced (5-6 hours, soldering).

Frequently asked questions

How do rotary encoders work?

They send two pulse signals slightly out of step, and the order they arrive in tells the Arduino which way you turned.

Can I add colours?

Yes. The TFT shows full colour, so the second button can change the pen colour.

Do I need to solder?

Yes. This is a soldered build, and the kit includes a soldering iron and solder.

With this advanced kit, you’ll construct a fully functional digital Etch-a-Sketch that draws smooth, real-time lines on a vivid 2.4-inch TFT screen using two precise rotary encoders. Press the button and watch the screen produce a simulated shake effect before clearing your sketch, just like the iconic mechanical toy but now in a compact, programmable form. Ideal for exhibitions, hackathons, and portfolio pieces, the finished unit becomes a conversation-starting piece of interactive art.

What You'll Build

A handheld drawing device that interprets encoder movements into cumulative X-Y paths, rendering them on an ILI9341 color display without lag. The clear button triggers a rapid screen shake animation, then erases the canvas—ready for your next doodle. You’ll walk away with a polished, original gadget that doubles as an embedded systems demo and a retro-inspired sketch tool.

What You'll Learn

  • Polling dual rotary encoders with interrupt‑driven routines to guarantee no missed steps
  • Drawing and selectively updating pixels on the ILI9341 TFT using the SPI interface and high‑performance libraries
  • Implementing a non‑blocking shake algorithm that animates a screen clear without halting encoder input
  • Stabilizing power with 100nF decoupling capacitors and pull‑up/down resistor networks for noise‑free operation

Kit Contents

Component Quantity
Arduino Uno R3 1
Rotary Encoder 2
2.4in TFT ILI9341 1
Tactile Button 2
10kΩ Resistors 10
100nF Caps 5
PCB Prototype Board 1
9V Battery Snap 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

Advanced maker designed for B.Tech ECE and EEE students tackling embedded systems assignments, Smart India Hackathon participants seeking an interactive display project, and college innovation club members who want a soldering‑heavy, code‑intensive build. If you’ve already worked with Arduino basics and crave a tangible, display‑driven challenge, this kit delivers exactly the right complexity.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the box’s QR code to chat with the AI companion trained on this exact Etch-a-Sketch build. It will walk you through wiring, code, and troubleshooting. For human help, our WhatsApp line responds.

Do I need prior experience with TFT displays and rotary encoders?

Some Arduino familiarity is assumed, but the companion provides detailed pinouts, library setup, and example sketches. You’ll learn the specifics hands‑on during the build.

Can I use this kit for college project submissions?

Absolutely. You’ll receive comprehensive documentation, circuit diagrams, and original code that meet university requirements. The shake effect adds a unique demonstration element.

How is the shake effect achieved without physical mechanics?

The clear button triggers a software animation that rapidly offsets and re‑draws the screen content several times, then blanks the display. It’s a purely visual simulation of the classic eraser motion.

Two rotary encoders move X and Y axes on TFT to draw. Button clears screen with shake shake effect.
