PCB Prototype Board – Perfboard for DIY Electronics Projects
PCB Prototype Perfboard 9x15cm 2.54mm

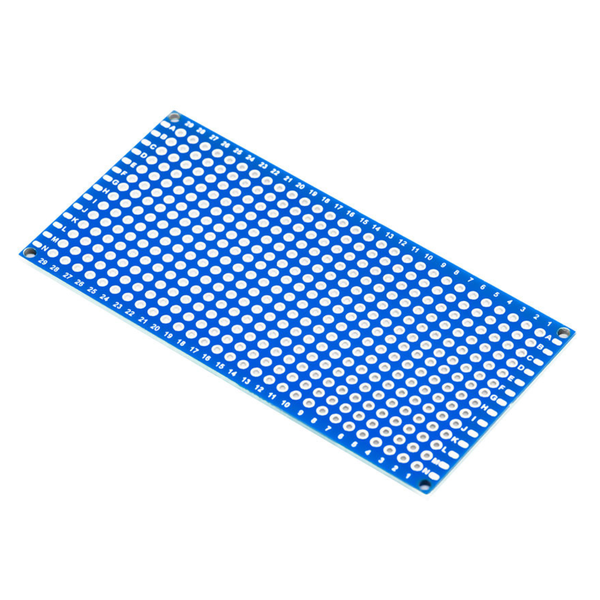

A standard single-sided FR-4 perfboard with pre-drilled 2.54mm pitch plated holes, ideal for soldering through-hole components and building permanent prototypes. Measures approximately 9x15 cm, suitable for Arduino, ESP32, and Raspberry Pi add-ons.
Key Specifications
| Board Material | FR-4 (Standard) |
| Thickness | 1.6 mm (Typical) |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Hole Diameter | Approx. 1.0 mm |
| Copper Layer | Single-sided, plated through holes |
| Pad Finish | Pre-tinned (solderable) |
| Board Size | Approx. 9 cm x 15 cm |
| Hole Pattern | Grid, 2.54 mm pitch |
What You Can Build With This
- LED Blink Circuit: Solder an LED and resistor directly to create a permanent version of the classic Arduino blink sketch.
- Wi‑Fi Relay Controller: Mount an ESP32 module and a relay on the board to switch home appliances via Wi‑Fi commands.
- GPIO Breakout for Raspberry Pi: Build a custom header with resistors and a ribbon cable connector for sensor projects.
- Rain Alarm Sensor: Assemble a water detection circuit with transistor and buzzer for CBSE physics practical or ATL tinkering.
- Smart Agriculture System: Combine a soil sensor, ESP8266, and relay on one board for a B.Tech final year project or Smart India Hackathon.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes | Solderable male headers | N/A (hardware only) |
| Arduino Nano | Yes | Solderable female headers or direct wire | N/A (hardware only) |
| Arduino Mega 2560 | Yes | Solderable male headers | N/A (hardware only) |
| ESP8266 NodeMCU | Yes | Solderable 2.54mm female headers | N/A (hardware only) |
| ESP32 Dev Board | Yes | Solderable 2.54mm female headers | N/A (hardware only) |
| Raspberry Pi Pico | Yes | Solderable castellation or male headers | N/A (hardware only) |
| Raspberry Pi 4 / 5 | Yes | Soldered 40‑pin GPIO extension | N/A (hardware only) |
Wiring and Interface Notes
Connect components using solid‑core jumper wires (22‑24 AWG) soldered onto the pre‑tinned pads. Since this is a passive board, all signals follow the voltages of the connected modules—be mindful of 3.3 V vs 5 V logic. For Arduino and ESP modules, solder single‑row male or female headers to simplify attachment and removal.
Frequently Asked Questions
What is the difference between this perfboard and a breadboard?
A breadboard lets you build temporary, solderless connections, while this perfboard requires soldering—making it perfect for durable, permanent projects where reliability is key.
Can I cut this perfboard to a smaller size?
Yes, you can cut FR‑4 with a hacksaw or rotary tool. Sand the edges and check that copper traces near the cut are not shorted.
