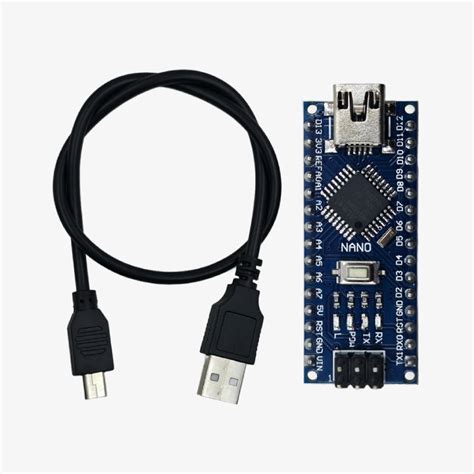

Nano R3 CH340 Development Board with USB Cable – Compatible with Arduino
Nano R3 CH340 Development Board With USB Mini Cable
The Nano R3 CH340 development board is a compact, breadboard-friendly microcontroller board based on the ATmega328P. It features a CH340 USB-to-serial chip instead of the traditional FTDI, providing reliable programming and serial communication. Ideal for embedded systems, IoT prototypes, and robotics, this board offers full Arduino Nano compatibility at a practical size.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Input Pins | 8 |
| Clock Speed | 16 MHz |
| USB Chip | CH340 |
What You Can Build With This
- Compact IoT temperature logger with DHT11 and OLED display
- Mini line-following robot using IR sensors and motor driver
- USB MIDI interface for digital musical instruments
- Ultrasonic distance meter with HC-SR04 and LED indicators
Compatibility
This board is fully compatible with the Arduino Nano pinout, making it suitable for any Arduino Nano shields and modules. It works at 5V logic levels, directly interfacing with 5V sensors, servos, and displays. The CH340 driver is well-supported on Windows, macOS, and Linux, just install the driver for seamless IDE upload.
Wiring Notes
Connect the board via the included USB Mini cable to your computer. The CH340 chip may require driver installation on some systems. The Vin pin accepts 7-12V, but for USB power, simply plug in. Avoid drawing more than 40mA per I/O pin to prevent damage.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino IDE?
Yes, it works directly with Arduino IDE. Just select "Arduino Nano" and the correct processor (ATmega328P) in the board manager after installing the CH340 driver.
Do I need to install CH340 drivers?
Most operating systems recognize CH340 automatically, but if not, download the driver from the manufacturer's site. Once installed, the board appears as a COM port for upload.
Can I power it with a 9V battery?
Yes, you can connect a 9V battery to the Vin pin. The onboard voltage regulator will step it down to 5V. Ensure the battery can supply at least 200mA for stable operation.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
