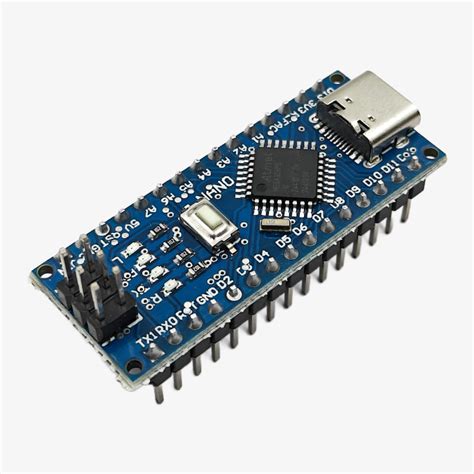

Nano R3 CH340 Board – Type-C, Soldered, Compatible with Arduino

SKU: CDN-0056 Brand: Compoden Category: Development Board
Rs. 210.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 85423100
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Nano R3 CH340 Development Board – Type-C, Soldered, Arduino-Compatible

This compact board combines a CH340 USB‑to‑serial chip with a USB Type‑C connector and pre‑soldered male pin headers. Use it as a drop‑in Arduino Nano replacement in breadboard projects, teaching environments, or custom embedded systems. The CH340 provides reliable serial communication and driver support across Windows, macOS, and Linux.

Key Specifications

Specification Value
Microcontroller ATmega328P
USB‑to‑Serial CH340
USB Connector USB Type‑C
Operating Voltage 5 V (USB) / 7‑12 V (VIN)
Digital I/O Pins 14 (6 PWM)
Analog Input Pins 8

What You Can Build With This

Compatibility

Compatible with the Arduino IDE and the standard Nano pinout. Works with most 5 V sensors, servos, and shields designed for Arduino Nano V3. The CH340 chip requires the CH34x driver on some systems (driver download available from the manufacturer’s site).

Wiring Notes

Pins are soldered with male headers, ready for insertion into a breadboard. The Type‑C port provides both power and USB communication. Do not draw more than 40 mA per I/O pin; total package current should stay below 200 mA without external power.

Is this compatible with the Arduino IDE?

Yes, fully compatible. Select “Arduino Nano” in the IDE, choose the ATmega328P (Old Bootloader) processor when prompted, and the CH340 driver will handle USB uploads.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
