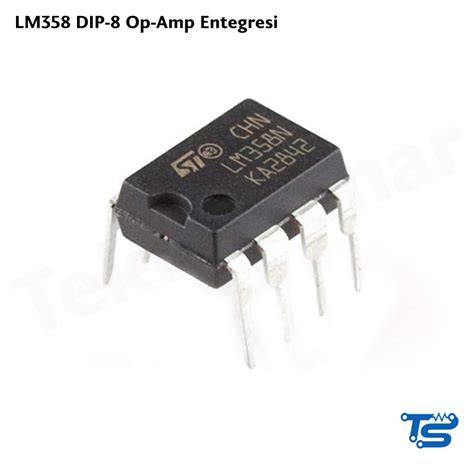

LM358 Op-Amp
The LM358 is a dual low-power operational amplifier IC featuring two independent op-amps in a single 8-pin DIP package. It is widely used for signal amplification, sensor interfacing, comparator circuits, and active filter design. With its ability to operate from a single supply as low as 3V, it's a popular choice for battery-powered and microcontroller-based projects.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | LM358 |
| Number of Channels | 2 |
| Supply Voltage (Single) | 3V to 32V |
| Supply Current per Channel | 0.5 mA (typ.) |
| Input Offset Voltage | 2 mV (max) |
| Package | DIP-8 |
What You Can Build With This
- Non-inverting amplifier for boosting weak sensor outputs
- Active low-pass filter for smoothing noisy analog signals
- Voltage comparator with adjustable hysteresis for threshold detection
- Audio preamplifier stage for electret microphones
Compatibility
The LM358 operatesV and 3.3V supplies, making it compatible with Arduino, ESP32, Raspberry Pi, and other development boards. It is often used with resistive sensor networks, potentiometers, and capacitor filters. Common pairings include the LM393 comparator or logic-level MOSFETs for driving loads.
Wiring Notes
Connect Vcc (pin 8) to +5V and GND (pin 4) to ground. For single-supply operation, bias the non-inverting input to half the supply voltage using a resistive divider. Add a 0.1ยตF ceramic bypass capacitor across Vcc and GND near the IC. The output can source or sink up to 20mA, so avoid driving heavy loads directly.
Is this compatible with Arduino?
Yes, LM358 works with the 5V supply from Arduino and can be used for analog signal conditioning, such as amplifying sensor outputs or creating voltage followers.
What is the supply voltage range?
It supports a wide single supply range from 3V to 32V, or dual supplies from ยฑ1.5V to ยฑ16V.
Can it drive a speaker directly?
No, the output current is limited to 20mA. For audio output, use an additional transistor amplifier or dedicated audio amplifier IC.
