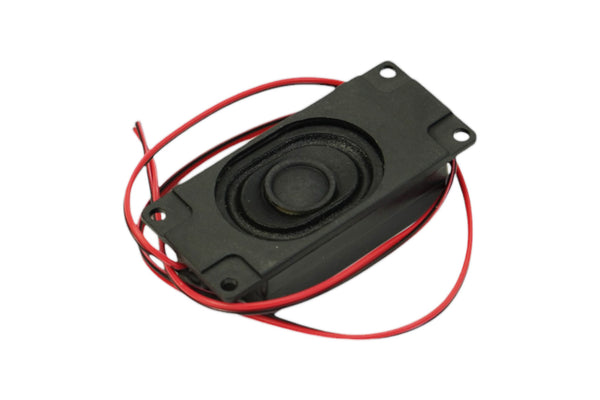

3W 8 Ohm Speaker for Arduino Audio Projects & DFPlayer Mini
Rs. 300.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai
Ask about this product
3W 8 Ohm Speaker for Arduino Audio & DFPlayer Mini
A compact 3-watt 8-ohm speaker designed for clear audio output in Arduino, ESP32, and Raspberry Pi projects; pairs directly with the DFPlayer Mini module for simple sound playback and voice alerts.
Key Specifications
| Power Rating | 3 W (nominal) |
|---|---|
| Impedance | 8 Ω |
| Frequency Response | 200 Hz – 15 kHz |
| Sensitivity | 85 dB (1W/1m) |
| Cone Diameter | 40 mm |
| Magnet Type | Ferrite |
| Connector | 2-pin JST PH 2.0 (8 cm wire) |
| Dimensions | 40 mm (diameter) x 5 mm (thickness) |
What You Can Build With This
- Mini Doorbell: Use an Arduino Uno with a DFPlayer Mini and button to play a custom doorbell chime through this speaker.
- WiFi Voice Notifier: Connect an ESP32 to a motion sensor and trigger pre-recorded voice alerts heard on the speaker.
- Portable Audio Player: Build a Raspberry Pi music player that outputs to this compact speaker for personal listening.
- Sound-Activated Alarm: CBSE Class 12 physics project using a microphone module, Arduino, and speaker to trigger an alarm on loud noise.
- Public Transport Audio Guide: B.Tech final year project using NFC tags to identify bus stops and announce them through the speaker for visually impaired commuters.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes with DFPlayer Mini | D10 (TX), D11 (RX) SoftwareSerial | DFRobotDFPlayerMini |
| Arduino Nano | Yes with DFPlayer Mini | D10 (TX), D11 (RX) SoftwareSerial | DFRobotDFPlayerMini |
| Arduino Mega 2560 | Yes with DFPlayer Mini | Serial1 (D18 TX, D19 RX) or D10,D11 | DFRobotDFPlayerMini |
| ESP8266 NodeMCU | Yes with DFPlayer Mini | GPIO2 (TX), GPIO15 (RX) SoftwareSerial | DFRobotDFPlayerMini |
| ESP32 Dev Board | Yes with DFPlayer Mini | GPIO17 (TX2), GPIO16 (RX2) or any SoftwareSerial pins | DFRobotDFPlayerMini |
| Raspberry Pi Pico | Yes with DFPlayer Mini | GP0 (TX), GP1 (RX) UART | DFRobotDFPlayerMini (Arduino core) |
| Raspberry Pi 4 / 5 | Yes with DFPlayer Mini | GPIO14 (TX), GPIO15 (RX) /dev/serial0 | Python serial + DFPlayer protocol |
Wiring and Interface Notes
Connect the speaker’s + and – terminals to the SPK_1 and SPK_2 outputs of the DFPlayer Mini module. The speaker operates at amplifier-level signals; never connect it directly to a 3.3V or 5V GPIO pin. For best sound, mount the speaker in a small enclosure to improve bass and volume.
Frequently Asked Questions
Can I connect this speaker directly to Arduino without an amplifier?
No, Arduino GPIO pins cannot drive a passive speaker. You must use an amplifier like the DFPlayer Mini or a transistor circuit to power the speaker.
How loud is this 3W speaker for a typical classroom or desk setup?
The 3W output provides clear audio for personal use or a quiet classroom; for noisy areas, a higher‑wattage speaker or additional amplification is recommended.
