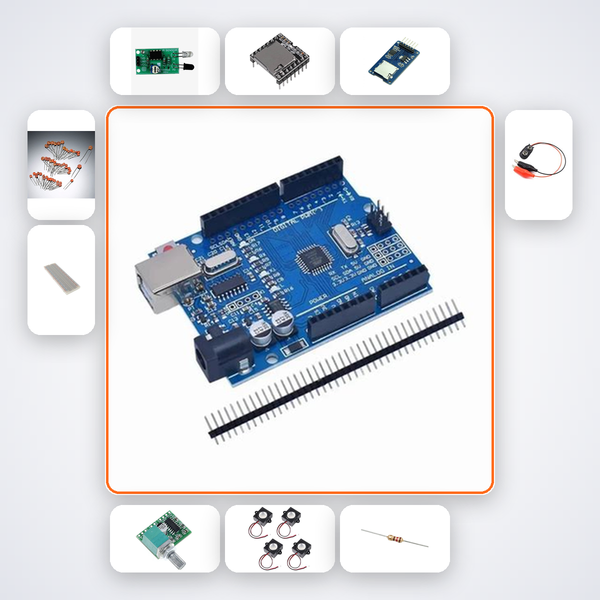

Build Your Own Optical Drum Pad with Arduino Uno & Sensor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Transform any flat surface into a responsive electronic drum kit without sticks or pads. This kit uses four IR proximity sensors to detect hand movements above designated zones, instantly triggering different drum samples through a DFPlayer Mini module. Builders create a touchless musical instrument that turns air gestures into kick, snare, hi‑hat, and tom sounds — perfect for school projects, tech fests, or just making music with electronics.

What You'll Build

You will assemble and program a 4‑pad optical drum system that plays distinct WAV/MP3 drum hits when your hand hovers over each sensor. The Arduino Uno reads infrared reflection changes, filters noise, and commands the DFPlayer Mini to output audio via a small amplifier and speaker. The finished instrument is battery‑powered and can be expanded to eight pads using the Uno’s remaining digital pins.

What You'll Learn

• How IR proximity sensors detect objects without contact and output analog distance signals
• Interfacing multiple sensor inputs and a serial MP3 player with Arduino Uno
• Writing trigger logic that maps sensor thresholds to specific audio tracks in real time
• Integrating a PAM8403 amplifier and 3W speaker for clean, room‑filling drum sounds

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Designed for CBSE Class 11–12 students exploring sensor‑based music technology, B.Tech ECE/EEE undergraduates tackling mini‑projects, and Smart India Hackathon teams building interactive installations. ATL Tinkering Labs and college clubs at IIT, NIT, VIT, or BITS will find it a ready‑made module for workshops and demonstrations. Some prior Arduino experience is beneficial, but the AI companion smooths the learning curve.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
