Build a 12-Key Capacitive Touch Music Keyboard with Arduino Uno and MPR121 Sensor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Music creation meets electronics in this touch-sensitive chromatic keyboard. Instead of mechanical keys, the MPR121 capacitive touch controller detects your fingertips on twelve conductive pads, and the Arduino Uno maps each touch to a precise note from the chromatic scale. The PAM8403 audio amplifier and speaker deliver rich, clear tones, turning a simple touch into a pure musical experience - ideal for budding makers, student hackers, and anyone curious about how touch synthesizers work.

What You'll Build

You will construct a fully playable 12-note capacitive keyboard that runs on a breadboard. Each touch pad triggers a distinct musical note across a full octave plus additional semitones. The project is completely self-contained, powered by a 9V battery, and can be housed in a custom enclosure of your own design. You'll walk away with a working instrument you can demonstrate to friends, use in a hackathon, or submit as a CBSE mini project.

What You'll Learn

• Interfacing the MPR121 capacitive touch sensor with Arduino via I2C communication
• Programming note-to-frequency mapping to play a chromatic scale in real time
• Driving a 3W speaker through the PAM8403 Class D audio amplifier
• Understanding capacitive sensing principles and debouncing touch inputs for reliable performance

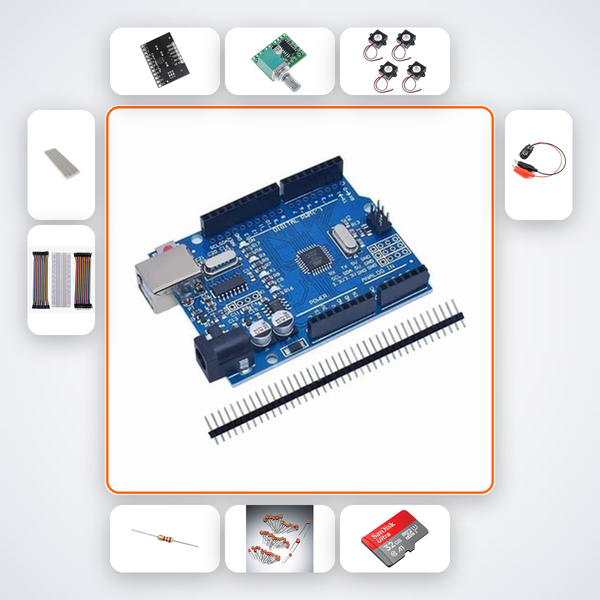

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is designed for CBSE Class 11-12 students diving into sensor applications, B.Tech ECE/EEE undergraduates building semester mini projects, Smart India Hackathon teams prototyping musical interfaces, ATL Tinkering Lab users in schools, and music-tech enthusiasts at IIT, NIT, VIT, BITS, and beyond. If you have basic Arduino experience and want to merge electronics with creative audio output, this kit gives you the exact components and roadmap.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
