MPR121 Capacitive Touch Sensor Module – 12-Key I2C Controller

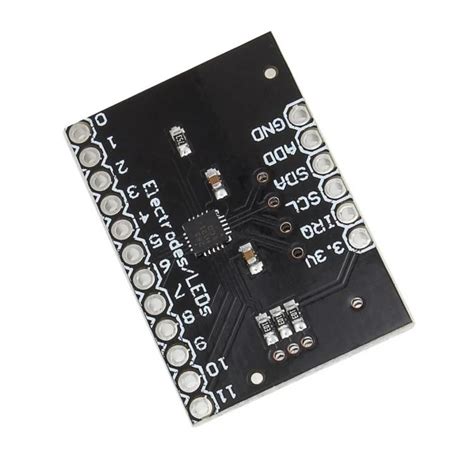

MPR121 Capacitive Touch Sensor Controller Module
The MPR121 is a dedicated capacitive touch controller with 12 electrode channels, communicating over I2C. It enables touch and proximity detection for building custom keypads, interactive surfaces, and wearable interfaces. No external components are required for basic touch sensing.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 2.5V – 3.6V (3.3V typical) |
| Touch Inputs | 12 capacitive electrodes |
| Communication | I2C, up to 400kHz, 4 selectable addresses |
| Operating Current | ~8 µA idle, ~20 µA scanning all channels |
| Proximity Detection | Up to ~30 mm range, adjustable sensitivity |
What You Can Build With This
- Custom 12-key capacitive touch keyboard or numpad
- Touch-sensitive musical instrument (MIDI controller)
- Interactive wall panel or light switch
- Proximity-activated lamp or alarm
Compatibility
Works with any microcontroller that supports 3.3V I2C, including ESP32, ESP8266, Raspberry Pi, STM32, and Arduino boards with logic level conversion. The module’s VCC and logic levels are 3.3V; when using 5V systems like Arduino Uno, add a bidirectional level shifter on SDA and SCL lines.
Wiring Notes
Connect VCC to 3.3V, GND to ground, SDA and SCL to your microcontroller’s I2C pins. The ADDR pin sets the I2C address; leave unconnected for default 0x5A. Touch electrodes can be copper tape, conductive thread, or PCB traces. Keep electrode leads short to minimize noise pickup.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Uno?
Yes, but the MPR121 module operates at 3.3V logic while Arduino Uno uses 5V I2C. You must insert a bidirectional level shifter on the SDA and SCL lines, or choose a 3.3V Arduino like the Pro Mini 3.3V.
How many touch electrodes can I use?
The MPR121 supports up to 12 capacitive touch electrodes. You can use fewer if your project needs only a few; unused channels are automatically disabled to save power.
Does it need external components?
No external resistors or capacitors are required for basic touch sensing. The module includes onboard I2C pull-up resistors and decoupling; simply connect electrodes and power.
