MQ-9 Gas Sensor Module for CO, Methane & LPG Detection
MQ-9 Gas Sensor Module

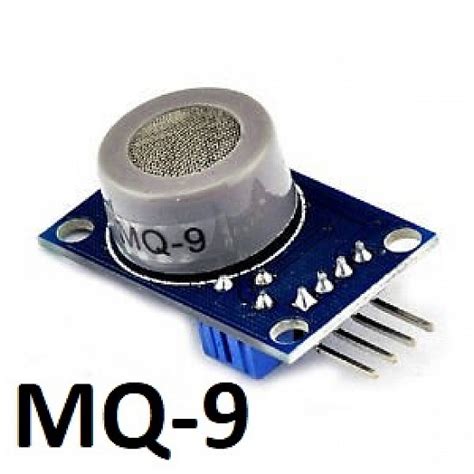

The MQ-9 gas sensor module detects carbon monoxide (CO), methane (CH₄), and liquefied petroleum gas (LPG). It’s widely used in air quality monitors, gas leak alarms, and industrial safety equipment. The module outputs both analog voltage and a digital TTL signal, making it easy to integrate with microcontrollers for threshold-based alerts or concentration monitoring.
Key Specifications
| Specification | Value |
|---|---|
| Gas Detected | CO, Methane, LPG |
| Detection Range | 10–1000 ppm CO; 300–10,000 ppm Methane/LPG |
| Operating Voltage | 5 V DC |
| Output Type | Analog (0–5 V) and Digital (TTL) |
| Preheat Time | 60–120 seconds (initial) |
What You Can Build With This
- Carbon monoxide leak alarm with buzzer and LED indicators
- Methane leak detector for kitchen or basement safety
- Portable air quality monitor with an LCD or OLED display
- Smart home gas alert system using an ESP8266 and cloud notifications
Compatibility
The module works with any 5V microcontroller board including Arduino Uno, Nano, and Mega. It can also interface with 3.3V boards like ESP8266, ESP32, or Raspberry Pi when using a logic level shifter or voltage divider for the digital output. The analog output requires an ADC input on the host board.
Wiring Notes
Connect VCC to 5V, GND to ground, AOUT to an analog input (e.g., A0), and DOUT to a digital pin. The heater draws around 150 mA during the high-heat cycle, so avoid powering the module directly from a microcontroller’s 5V pin; use an external regulated supply.
