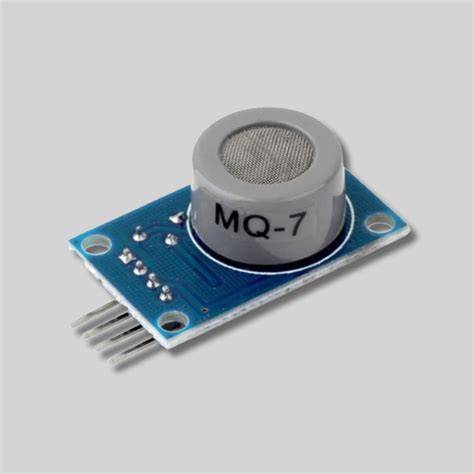

MQ-7 Gas Sensor Module for Carbon Monoxide

The MQ-7 gas sensor module is designed to detect carbon monoxide (CO) concentrations in the air. It is used in air-quality learning projects and data logging. It is not a certified CO detector. The module provides an analog output proportional to gas concentration, making it easy to integrate with microcontrollers.

Key Specifications

Specification Value
Detection Gas Carbon monoxide (CO)
Operating Voltage 5V DC
Detection Range 20 – 2000 ppm
Heater Resistance 33 Ω ±5%
Preheat Time 2 – 5 minutes (cycle)
Output Type Analog voltage (0 – 5V)

What You Can Build With This

Compatibility

This module operates at 5V, making it directly compatible with Arduino Uno, Nano, and Mega boards. For 3.3V systems like ESP32 or Raspberry Pi, use a level shifter or voltage divider on the analog output. It pairs well with LCD displays, buzzers, and relay modules for alert systems.

Wiring Notes

Connect VCC to 5V, GND to ground, and AOUT to an analog input pin. The module draws up to 350 mW during heating cycles; ensure your power supply can handle the load. For best accuracy, allow the sensor to preheat for 2–5 minutes before taking measurements. Avoid exposing the sensor to silicon vapors or corrosive gases to prolong lifespan.

Is this compatible with Arduino?

Yes, the MQ-7 module works directly with 5V Arduino boards like Uno and Nano. Connect AOUT to any analog pin to read CO levels.

How long does the sensor need to warm up?

Initial preheating takes 2–5 minutes for stable readings. For precise applications, allow 48 hours of continuous operation for complete stabilization.

Can this sensor detect other gases?

It is primarily sensitive to carbon monoxide but may show minor cross-sensitivity to hydrogen, methane, and alcohol vapors. For dedicated CO detection, use in controlled environments.
