Raspberry Pi Camera Module 2 (8MP)
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

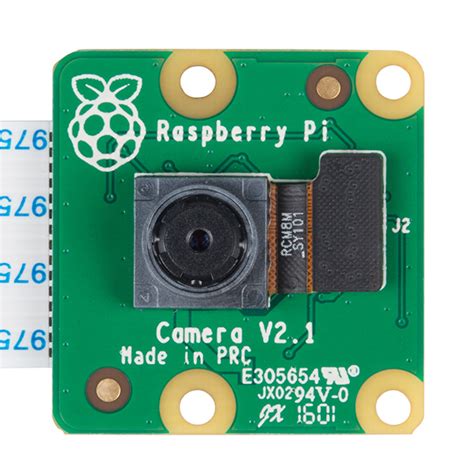

Raspberry Pi Camera Module V2
The Raspberry Pi Camera Module V2 is an 8-megapixel fixed-focus camera add-on designed for all Raspberry Pi boards with a CSI connector. Built around an 8 MP Sony sensor (see Sensor note below), it captures sharp still images and smooth 1080p video, making it ideal for computer vision, time-lapse photography, and DIY security systems.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX219 or IMX355, 8-megapixel |
| Still Resolution | 3280 × 2464 pixels |
| Video Modes | 1080p30, 720p60, 640×480p90 |
| Lens | Fixed focus, f/2.0 |
| Field of View | 62.2° horizontal, 48.8° vertical |
| Dimensions | 25mm × 24mm × 9mm |
Sensor: Sony IMX219 on units made before November 2026; Sony IMX355 on units made from November 2026 (printed on the board; same 8 MP). New IMX355 units may need a full Raspberry Pi OS update.
What You Can Build With This
- Home security camera with motion detection
- Time-lapse rig for plant growth or weather
- Video doorbell with live streaming
- Pet or wildlife monitoring via Wi-Fi
Compatibility
This module connects to any Raspberry Pi with a dedicated CSI connector—including the Pi 4, Pi 3, Pi Zero (with a ribbon adapter), and Pi 5 (the Raspberry Pi 5 needs a separate 22-way (Standard-Mini) camera cable). It runs on the 3.3V supply from the board and draws minimal current. Libraries like picamera and libcamera provide full software support out of the box.
Wiring Notes
Attach the 15cm ribbon cable to the CSI port with the metal contacts facing away from the Ethernet/USB ports on full-size boards. Ensure the cable is fully seated; incorrect orientation can cause no image. No separate power or external wiring is needed.
Is this compatible with Raspberry Pi 5?
Yes, it works with Raspberry Pi 5, but the Raspberry Pi 5 needs a separate 22-way (Standard-Mini) camera cable (sold separately); the included 15-pin cable does not fit the Pi 5 camera port.
Does the module include a ribbon cable?
A 15cm flat flex ribbon cable is included in the package, so you can connect the camera to your Pi right away.
Can I adjust the focus?
The lens is fixed-focus at the factory, but you can rotate it slightly with a tool to change the focal point. This is not a user-adjustable macro lens, but small tweaks are possible.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
