Raspberry Pi Sense HAT 2 - 8x8 LED Matrix & Sensor Board
Raspberry Pi Sense HAT 2 – 8×8 LED Matrix & Environmental Sensor Board

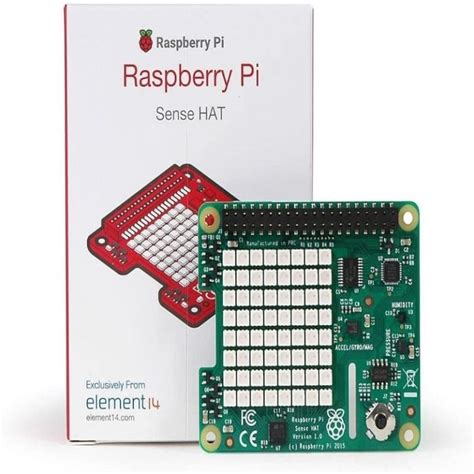

The Raspberry Pi Sense HAT 2 is an official add-on board that equips your Raspberry Pi with an 8×8 RGB LED matrix, a 5-button mini joystick, and a comprehensive set of sensors. It includes an IMU (gyroscope, accelerometer, magnetometer) for motion tracking, and environmental sensors for temperature, humidity, and barometric pressure. Ideal for data logging, gaming, and IoT applications, this board is the same hardware used in the Astro Pi missions on the International Space Station.
Key Specifications
| Specification | Value |
|---|---|
| Sensor ICs | ICM-20948 (IMU), LPS25HB (pressure), HTS221 (temp/humidity) |
| IMU | 9-axis: gyroscope, accelerometer, magnetometer |
| Pressure range | 260 – 1260 hPa |
| LED Matrix | 8×8 RGB (RGB565 format) |
| Joystick | 5-directional mini joystick |
| Board dimensions | 65mm × 56mm × 19mm |
What You Can Build With This
- Environmental monitoring station: log temperature, humidity, pressure over time and display on the LED matrix.
- Orientation indicator: use the IMU to create a spirit level or compass with the LED matrix.
- Space data logger: simulate the Astro Pi environment by collecting sensor data in a portable setup.
- Retro gaming: develop a small game using the joystick for input and the matrix as display.
Compatibility
The Sense HAT 2 is compatible with all Raspberry Pi models featuring a 40-pin GPIO header, including Pi 4, Pi 3, Pi 2, Pi Zero, and Pi 400. It uses the dedicated Python library (sense-hat) for easy programming. The board operates at 3.3V logic and is powered directly from the Pi.
Wiring Notes
Simply align the GPIO header and press the board onto the Pi's pins; no external wiring is needed. Ensure the Pi is powered off when attaching. If using with a case, check clearance for the header and the board height.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the Sense HAT 2 uses the standard 40-pin GPIO and works perfectly with the Pi 5. You may need to enable I2C and install the sense-hat package.
Can I use this without a Raspberry Pi?
No, the Sense HAT 2 is designed exclusively for Raspberry Pi's GPIO and software support. For standalone sensor boards, consider breakout modules.
Does it include a standoff kit?
The Sense HAT 2 ships without standoffs; however, a standard 2.5mm mounting kit for Raspberry Pi HATs is recommended for secure attachment.
