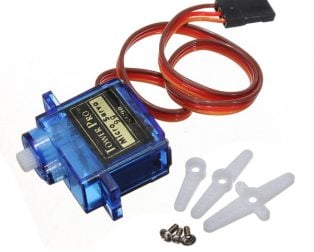

TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
The TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is a modified version of the standard SG90 servo, designed for continuous rotation instead of limited-angle movement. It is ideal for robotics projects requiring wheel drive, tank treads, or endless rotation mechanisms.
Specifications
- Operating Voltage: 4.8V to 6V
- Stall Torque: 1.8 kg-cm at 4.8V
- Speed: 0.1 sec/60° at 4.8V (no load)
- Rotation: Continuous 360 degrees (modified for endless rotation)
- Control Signal: Standard PWM (50 Hz, 1-2 ms pulse width)
- Weight: 9 grams
- Dimensions: 23 x 12.2 x 29 mm
- Gear Type: Plastic
Compatible with
Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi (via PWM or servo driver), STM32, and any microcontroller generating a 50 Hz PWM signal.
What you can build with it
- Robot drive base — use two continuous rotation servos for differential steering
- Pan-tilt camera mount — continuous rotation allows 360-degree scanning
- Conveyor belt or winch mechanism — endless rotation for linear motion
Built and Backed by Compoden
Every TowerPro SG90 Continuous Rotation Servo Motor comes with access to our AI build companion, delivered via QR code, email, or WhatsApp. It helps you wire and program this motor into a working project step-by-step. With 10 years of experience supplying makers and institutions across India, Compoden ensures you get genuine parts and reliable support.
Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
What is the difference between a standard SG90 and a continuous rotation SG90?
A standard SG90 rotates only 0–180 degrees. The continuous rotation version has been modified to spin endlessly in either direction, controlled by the PWM pulse width (1 ms = full speed one way, 1.5 ms = stop, 2 ms = full speed opposite).
