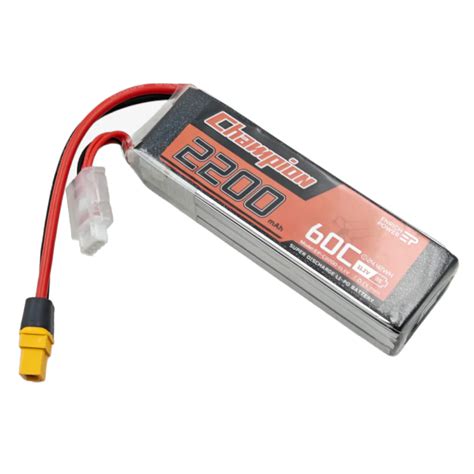

3S LiPo 2200mAh 11.1V High Discharge Battery for Drones & RC Projects
3S LiPo 2200mAh 11.1V Battery Pack — Reliable Power for Drones and RC Models
This is a 3-cell (3S) lithium polymer battery pack with a nominal voltage of 11.1V and a capacity of 2200mAh. It delivers high discharge rates for demanding applications like multirotor drones, RC aircraft, and ground vehicles. The XT60 connector ensures secure, low-resistance connections for consistent performance.
Key Specifications
| Specification | Value |
|---|---|
| Configuration | 3S1P |
| Nominal Voltage | 11.1V |
| Capacity | 2200mAh |
| Continuous Discharge | 25C (55A) |
| Connector | XT60 |
| Dimensions (approx.) | 105 x 35 x 25 mm |
What You Can Build With This
- FPV racing or freestyle drone
- RC car or truck with high-torque motor
- Autonomous robot with motor drivers and sensors
- Portable 12V supply for Arduino or Raspberry Pi projects (with regulator)
Compatibility
This 3S LiPo works with most drones and RC vehicles designed for 11.1V systems. It pairs well with flight controllers like Pixhawk or Naze32, and with ESCs rated for 3S. The XT60 connector is a standard in hobby-grade electronics. For development boards, use a step-down regulator to avoid overvoltage.
Wiring Notes
Always connect the XT60 plug with correct polarity — red to positive, black to ground. Use a balance charger that supports 3S LiPo batteries and connect both the main discharge lead and the balance lead. Never discharge below 3.0V per cell to prevent damage.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with DJI drones?
This is a standard 3S LiPo, but DJI drones often use proprietary smart batteries. Check your drone's manual for voltage and connector compatibility before use.
What charger should I use?
You need a balance charger capable of charging 3S LiPo batteries, such as the IMAX B6 or similar. Always charge at 1C (2.2A for this pack) in a fire-safe location.
How long does it last on a single charge?
Flight or run time depends on the load. For a typical 250-size drone drawing 10A, expect around 10-12 minutes. Always land when voltage per cell reaches 3.5V under load.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
