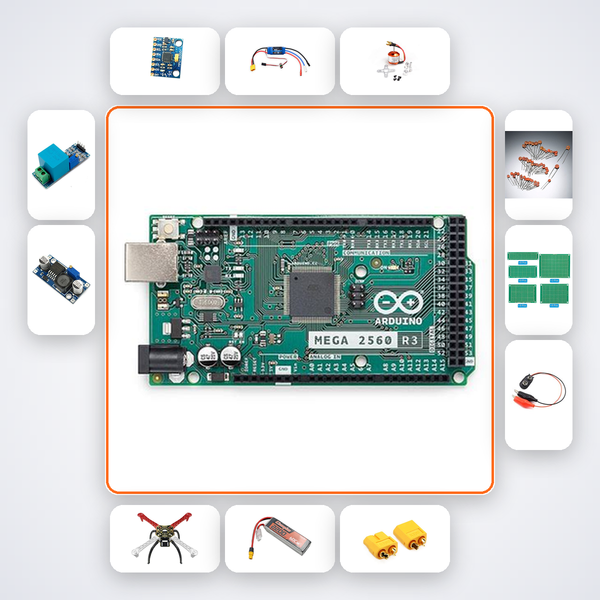

Build a Self-Balancing Quadcopter with Arduino Mega + MPU6050 PID Flight Controller Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Most drone kits give you a pre-flashed flight controller and hide the real engineering inside a black box. This kit flips that model: you will write and tune the PID control loops that keep a quadcopter stable on roll, pitch, and yaw, using raw IMU data from the MPU6050. By the time the F450 frame lifts off the ground, you'll understand exactly why it doesn't flip over - because you built the stabilisation yourself on an Arduino Mega 2560. The project is framed around India's growing UAV innovation scene, giving B.Tech, SIH, and ATL tinkerers the flight dynamics foundation that commercial autopilots never explain.

What You'll Build

You will assemble a 2204 brushless quadcopter on an F450 frame, wire four 30 A ESCs through a buck converter and XT60 connector, fuse the MPU6050 orientation data into complementary filters, implement cascaded PID controllers for attitude hold, and command the drone wirelessly via a pair of NRF24L01 modules. The result is a flying testbed that you can keep refining - a platform that responds directly to every line of code you upload.

What You'll Learn

• Implement cascaded PID control loops for roll, pitch, and yaw using Arduino's real-time loop timing
• Interface the MPU6050 IMU and apply sensor fusion (complementary filter) to obtain clean pitch/roll angles
• Calibrate and drive 30 A SimonK ESCs for smooth, synchronised brushless motor response
• Establish a bidirectional NRF24L01 radio link and decode control packets for throttle, yaw, and attitude setpoints

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This intermediate kit is purpose-built for B.Tech ECE and EEE students tackling drone major projects, Smart India Hackathon teams refining UAV stability algorithms, CBSE Class 12 physics enthusiasts who want to code real-time control, and ATL Tinkering Lab mentors looking for a complete multirotor learning curriculum. It's equally relevant for IIT, NIT, VIT, and BITS Pilani engineering clubs organising in-house drone workshops - the included AI companion and ready-to-flash Arduino code mean you spend less time hunting for libraries and more time tuning gains.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
