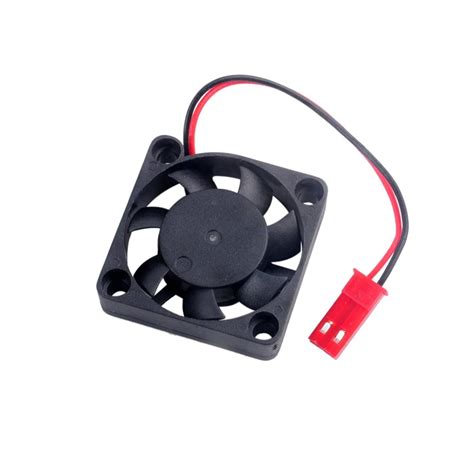

5V Raspberry Pi Cooling Fan - Quiet 30mm Brushless Fan
5V 30mm Cooling Fan for Raspberry Pi – Quiet Brushless Design
This 5V DC brushless cooling fan is built specifically for Raspberry Pi single-board computers. It provides active airflow to prevent thermal throttling during heavy workloads, overclocking, or continuous operation in enclosed cases. The 30mm square frame mounts directly onto official Pi cases with ventilation slots, keeping your board stable and reliable.
Key Specifications
| Specification | Value |
|---|---|
| Dimensions | 30mm x 30mm x 10mm |
| Operating Voltage | 5V DC |
| Current Draw | 0.1A (typical) |
| Fan Speed | 5000 RPM ±10% |
| Noise Level | <25 dBA |
| Connector | 2-pin female header (fits GPIO) |
What You Can Build With This
- Overclocked Raspberry Pi cluster for distributed computing tasks
- 24/7 home automation server with stable temperature control
- Retro gaming console that runs demanding emulators without slowdowns
- Silent media center (Kodi/Plex) that avoids heat-induced throttling
Compatibility
This fan works with any Raspberry Pi model that exposes 5V and GND pins on the 40-pin GPIO header – including Pi 4, Pi 3, Pi 2, and Pi Zero (with header soldered). It can also be powered from a 5V Arduino output or an external 5V supply. The 2-pin connector plugs directly onto pins 4 (5V) and 6 (GND) without soldering.
Wiring Notes
Connect the red wire to a 5V power pin (pin 2 or 4) and the black wire to any ground pin (pin 6, 9, 14, etc.). Ensure the pi is powered off before connecting. If the fan draws more than 0.2A, use a separate 5V rail to avoid overloading the GPIO regulator.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the fan works with the Pi 5 and its GPIO pinout. The 5V and GND pins are unchanged, so plugging it in is straightforward.
Will it fit in the official Raspberry Pi case?
The official case includes mounting points for a 30mm fan. This fan aligns perfectly and secures with the included screws.
How noisy is the fan during operation?
At under 25 dBA, the fan is virtually silent in typical ambient conditions, making it ideal for desktop or media center use.
