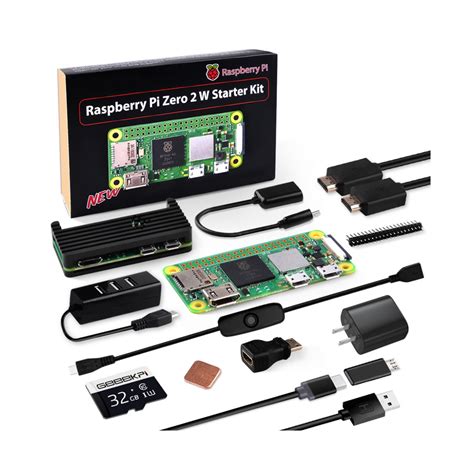

Raspberry Pi Zero 2 W - 1GHz Quad-Core, Wi-Fi, Bluetooth, 512MB RAM
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Ships in about 40 days. The Raspberry Pi Zero 2 W is on a supplier lead time, so this order dispatches in about 40 days. You'll get the courier and tracking details by email as soon as it ships.
Raspberry Pi Zero 2 W — 1GHz Quad-Core with Wi-Fi & Bluetooth, 512MB RAM
The Raspberry Pi Zero 2 W is a compact single-board computer built around a Broadcom BCM2710A1 quad-core 64-bit SoC running at 1GHz. It delivers a significant performance boost over the original Zero while retaining the same tiny form factor. With integrated 2.4GHz Wi-Fi, Bluetooth 4.2, and BLE, it's designed for space-constrained IoT, embedded, and portable projects.
Key Specifications
| Specification | Value |
|---|---|
| Processor | Broadcom BCM2710A1 1GHz quad-core Cortex-A53 |
| RAM | 512MB LPDDR2 SDRAM |
| Wireless | 802.11b/g/n Wi-Fi, Bluetooth 4.2, BLE |
| Video Output | mini HDMI (1080p60) |
| GPIO | 40-pin unpopulated header (HAT-compatible) |
| Power | 5V 2.5A via micro USB, GPIO header |
What You Can Build With This
- Retro gaming console with RetroPie
- Portable environmental sensor with Wi-Fi logging
- Home automation controller with Home Assistant
- Compact camera for time-lapse or security with Raspberry Pi Camera Module
Compatibility
Works with any Raspberry Pi OS (Lite or Desktop), and most Linux distributions that support armhf. Compatible with standard 40-pin HATs and pHATs. Commonly paired with the Camera Module v2 via the CSI connector. GPIO logic is 3.3V; use level shifters when interfacing with 5V devices.
Wiring Notes
The 40-pin header is unpopulated; solder a standard male header or use a hammer-header for quick attachment. For power, micro USB is typical, but you can also supply 5V via pins 2 (+5V) and 6 (GND). Do not exceed 3.3V on any GPIO input pin.
What power supply does the Raspberry Pi Zero 2 W need?
A 5V 2.5A supply through the micro USB power port. You can also power it from a regulated 5V supply on the GPIO header: pin 2 is +5V and pin 6 is GND. Avoid back-powering it through the USB ports.
Which cables do I need to connect a monitor and a keyboard?
The board has a mini HDMI port (1080p60), so a monitor needs a mini HDMI to HDMI cable or adapter. USB devices such as a keyboard connect through a micro USB OTG adapter.
Does the Raspberry Pi Zero 2 W come with the GPIO header soldered?
No. The 40-pin GPIO header is unpopulated. Solder on a 2x20 male header (not included) or use a hammer-header kit. Once the header is on, standard 40-pin HATs and pHATs fit.
Does it work with Raspberry Pi OS and the camera module?
Yes. It runs Raspberry Pi OS (32-bit and 64-bit) and most Linux distributions that support armhf; the Lite version is recommended for headless setups. It has a CSI camera connector and is commonly paired with the Camera Module v2, using the Zero's smaller 22-pin ribbon cable.
What else should I buy with the Raspberry Pi Zero 2 W?
A microSD card for the operating system, a 5V 2.5A micro USB power supply, a mini HDMI cable if you want a screen, and a 40-pin male header. GPIO logic is 3.3V, so use a level shifter with 5V devices.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
- COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
- Delivery Timeline: Dispatch in 40 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
The official datasheet / documentation for this part:
View DatasheetPinout
| Pin | Function |
|---|---|
| GPIO2 | digital, output, i2c sda, fixed pullup |
| GPIO3 | digital, output, i2c scl, fixed pullup |
| GPIO4 | digital, output |
| GPIO5 | digital, output |
| GPIO6 | digital, output |
| GPIO7 | digital, output, spi ce1 |
| GPIO8 | digital, output, spi ce0 |
| GPIO9 | digital, output, spi miso |
| GPIO10 | digital, output, spi mosi |
| GPIO11 | digital, output, spi sclk |
| GPIO12 | digital, output, pwm |
| GPIO13 | digital, output, pwm |
| GPIO14 | digital, output, uart tx |
| GPIO15 | digital, output, uart rx |
| GPIO16 | digital, output |
| GPIO17 | digital, output |
| GPIO18 | digital, output, pwm |
| GPIO19 | digital, output, pwm |
| GPIO20 | digital, output |
| GPIO21 | digital, output |
| GPIO22 | digital, output |
| GPIO23 | digital, output |
| GPIO24 | digital, output |
| GPIO25 | digital, output |
| GPIO26 | digital, output |
| GPIO27 | digital, output |
I2C: SDA GPIO2, SCL GPIO3
