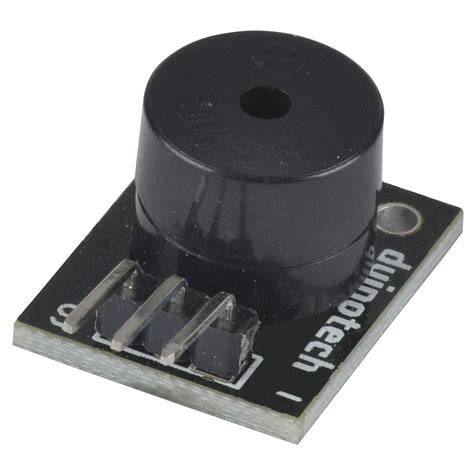

Active Buzzer DC 3-5V 85dB Sounder Module for Arduino & Raspberry Pi

SKU: CDN-0850 Brand: Compoden Category: Electronics > Computers > Single-Board Computers
Rs. 45.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 85182900
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Active Buzzer

This active buzzer generates a continuous tone when DC voltage is applied—no external oscillator needed. Just power it with 3–5 V to get an 85 dB alert at 2.3 kHz, perfect for alarms, timers, and status indicators in embedded projects.

Key Specifications

Specification Value
Operating Voltage 3–5 V DC
Current Consumption ≤30 mA
Sound Output 85 dB at 10 cm
Resonant Frequency 2.3 ± 0.3 kHz
Dimensions 12 mm x 9.5 mm (⌀ x H)
Pin Spacing 6.5 mm (2-pin header)

What You Can Build With This

Compatibility

Works directly with Arduino Uno, Nano, Mega, and Raspberry Pi GPIO (via transistor for higher current). Accepts 3.3 V logic level for control—simply connect the positive pin to the MCU pin through a current-limiting resistor (100 Ω). Common pairings include Arduino tone-generating projects or as a simple alert alongside LCDs and sensors.

Wiring Notes

Red wire to VCC (3–5 V), black to GND. Drive the buzzer directly from an Arduino digital pin (set HIGH to sound) with a 100 Ω resistor in series. Max current draw is 30 mA; do not exceed 5 V or continuous operation beyond 30 seconds may affect longevity.

Is this compatible with Arduino?

Yes, the active buzzer works with any Arduino board. Connect the positive lead to a digital pin (with a series 100 Ω resistor) and the negative to GND. Drive the pin HIGH to sound the buzzer; no tone() library needed.

Can I control the volume?

Volume is fixed. To reduce loudness, you can add a series resistor (100–220 Ω) or use PWM, though the tone may distort. For adjustable volume, consider a passive buzzer with a potentiometer.

Will this work with 3.3 V logic?

Yes, the buzzer activates reliably from 3 V, so it works with 3.3 V boards like Raspberry Pi Pico, ESP8266, or STM32. For Raspberry Pi GPIO, use a transistor driver because the pin current is limited.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
