Morning Alarm with LCD

SKU: CDN-KIT-0209 Brand: Compoden Category: Electronics > Home Automation > Project Kits
Rs. 1,145.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Morning Alarm with LCD — a beginner-level kit.

Morning Alarm with LCD – Build a Programmable Wake-Up Timer Using Arduino

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Real‑time clock programming and LCD interfacing

Wake up to a device you made yourself. This kit lets you create a fully functional morning alarm that rings a buzzer exactly when you tell it to, with the current time and alarm settings clearly visible on a bright LCD screen. Push buttons let you adjust the hours and minutes, making it feel like a real product you can personalise every day. It’s the perfect project to start learning how everyday electronics work, with no soldering required.

What You'll Build

You'll assemble a digital alarm clock on a breadboard that displays time on a 16×2 character LCD. The DS3231 real‑time clock module keeps precise time even when the main power is off, and a loud active buzzer sounds at the alarm hour you set. Three tactile buttons let you set the current time, configure the alarm, and mute the buzzer. In just a few hours, you'll hold a working morning alarm you can place on your desk.

What You'll Learn

  • How to read accurate time from a DS3231 RTC module using Arduino
  • How to display text and numbers on a 16×2 LCD with an I2C backpack
  • How to use multiple push buttons to adjust time and alarm values in code
  • How to trigger a buzzer as a time-based alarm and handle user input

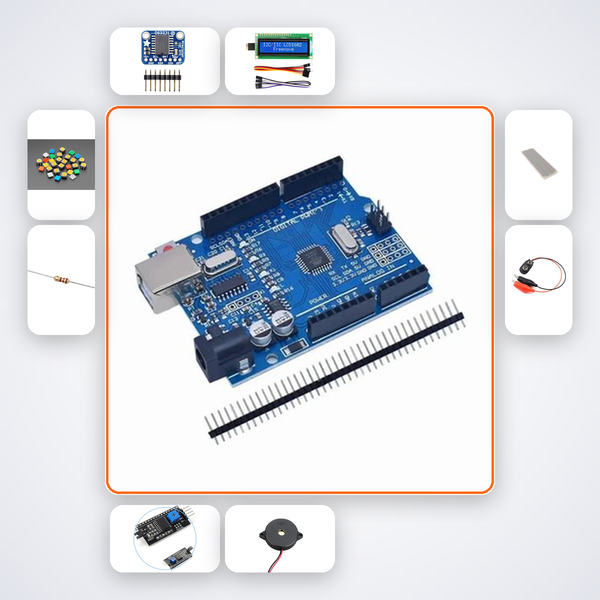

Kit Contents

Component Quantity
Arduino Uno R3 1
DS3231 RTC 1
16x2 LCD 1
I2C Backpack 1
Active Buzzer 1
Tactile Button 3
10kΩ Resistors 5
220Ω Resistors 5
400-pt Breadboard 1
M-M Wires 20
9V Battery Snap 1

Who This Kit Is For

Makers in India's ATL Tinkering Labs, CBSE and ICSE students beginning with Arduino, and anyone looking for a weekend STEM activity. Also a natural fit for first‑year B.Tech ECE/EEE students who need a simple embedded systems demo, or participants in the Smart India Hackathon exploring IoT basics. If you can follow a story‑like guide, you can build this alarm.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI companion from the QR code or reach us on WhatsApp — it understands every connection and line of code for this specific alarm project, and can walk you through any problem step by step.

Can I change the alarm sound or add a snooze?

Absolutely. The companion includes suggestions to modify the buzzer tone pattern and shows you how to extend the code for a snooze button with just a few extra lines.

Will the clock keep time if battery is removed?

The DS3231 module includes a backup coin cell holder. Once you insert a cell (not supplied), the clock runs even when Arduino power is off, so you never lose the time.

Do I need any coding experience?

None. The AI companion explains every command in plain language, and you only have to type what it shows you.

DS3231 RTC triggers a buzzer alarm at a set time. Time and alarm set via push buttons shown on LCD.
