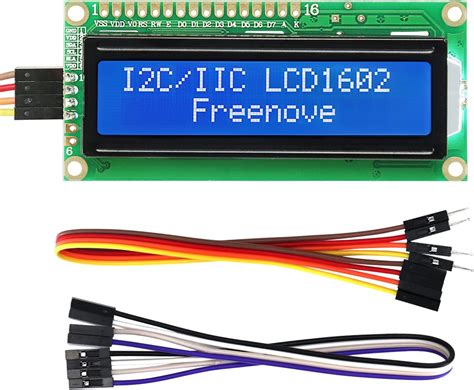

16x2 Character LCD Display Module with Blue Backlight

The 16x2 LCD is a widely used character display capable of showing 16 characters across 2 lines. It is suitable for embedded projects, providing a simple way to display text, numbers, or custom characters. The module uses the HD44780 controller, ensuring compatibility with many development platforms.

Key Specifications

What You Can Build With This

• Arduino-based digital thermometer displaying temperature and humidity
• Real-time clock showing time and date
• Simple text-based message display for IoT alerts
• Sensor data monitor for voltage, current, or distance readings

Compatibility

This module works with any 5V microcontroller that has at least 6 GPIO pins, such as Arduino Uno, Mega, or Nano. For 3.3V systems like Raspberry Pi or ESP8266, use a level shifter or enable 3.3V-compatible mode if supported by the module variant. It pairs well with common sensors and I2C adapters to save pins.

Wiring Notes

For a standard Arduino setup, connect VSS to GND, VDD to 5V, V0 to the middle pin of a 10K potentiometer (with ends to 5V and GND), RS to digital pin 12, EN to pin 11, D4-D7 to pins 5-4-3-2. Tie R/W to GND. In code, use the LiquidCrystal library with 4-bit mode.
