Trip Wire Intruder Alarm Kit with Arduino Uno + LED
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Trip Wire IR Intruder Alarm Kit: Arduino Uno, LM358, IR Pair — a beginner-level kit.
Trip Wire IR Intruder Alarm Kit: Arduino Uno, LM358, IR Pair
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A trip-wire alarm: learn how IR emitter and receiver pairs work by shining an infrared LED onto a photodiode, amplifying the signal with an LM358, and making an Arduino Uno sound a buzzer the moment anything breaks the beam.

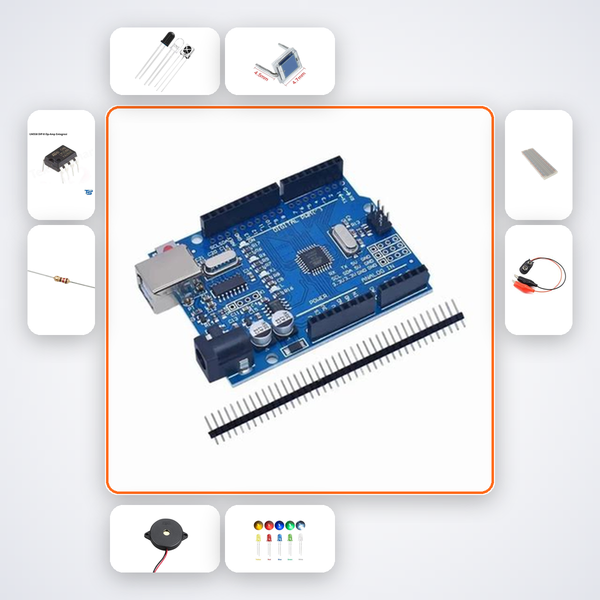

What's in the box
- Arduino Uno R3
- IR LED 940nm × 2
- IR Photodiode × 2
- Active Buzzer
- 5mm Red LED × 3
- LM358 Op-Amp
- 10kΩ Resistors × 10
- 1kΩ Resistors × 5
- 220Ω Resistors × 5
- 400-pt Breadboard
- M-M Wires × 20
- 9V Battery Snap
Power: 9V battery, not included.
Skill level: Intermediate (3-4 hours).
Frequently asked questions
What does the LM358 do?
It turns the photodiode's small signal into a clean on-off.
Is it a certified alarm?
No. It's a learning project.
Imagine stretching a nearly invisible infrared beam across a doorway or hallway. The moment someone breaks that beam, a loud buzzer sounds and a red LED flashes — just like a real security system. This kit turns that idea into a working project using an Arduino Uno, an IR LED, a photodiode, and a handful of supporting components. In under three hours, anyone from age 10 upward can build a functioning trip wire alarm, gaining a concrete understanding of how IR emitter/receiver pairs operate in everyday electronics.
What You'll Build
You will assemble and code a trip wire intruder alarm that uses an infrared beam as the trigger. Once built, align the IR LED and photodiode across a line of sight; step through the beam and instantly the active buzzer screams and the warning LED lights up. The system stays armed until you manually reset it, giving you a real-time, hands-on demonstration of optical beam interruption sensing — the same principle used in automatic doors, object counters, and many commercial security products.
What You'll Learn
- How an infrared LED emits light invisible to the human eye and how a photodiode detects it
- Using an LM358 op-amp as a comparator to convert the photodiode’s analog signal into a clean digital on/off state
- Programming an Arduino Uno to monitor the beam and trigger an alarm when it breaks
- Basic circuit prototyping on a breadboard, resistor colour-code reading, and wiring tidy connections
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | x1 |
| IR LED 940nm | x2 |
| IR Photodiode | x2 |
| Active Buzzer | x1 |
| 5mm Red LED | x3 |
| LM358 Op-Amp | x1 |
| 10kΩ Resistors | x10 |
| 1kΩ Resistors | x5 |
| 220Ω Resistors | x5 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
| 9V Battery Snap | x1 |
Who This Kit Is For
This trip wire alarm kit is designed for makers, school students working on CBSE science projects, and hobbyists exploring electronics for the first time. It fits ATL Tinkering Lab setups across India as a hands-on way to understand sensor-based automation. Parents looking for a weekend STEM activity will find the build time ideal, and B.Tech aspirants can use it as a quick practical introduction to IR communication concepts.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The included QR code opens a dedicated AI chat that has been trained on every component and step of this trip wire alarm. It can answer wiring, code, and troubleshooting questions instantly. If you prefer, you can also message us via WhatsApp for human help.
Do I need any soldering or special tools?
No soldering is required. All connections are made on the included breadboard using the jumper wires. You only need a laptop or desktop to upload the Arduino code, and a 9V battery (not included) to power the circuit once programmed.
Is the IR beam safe for eyes?
Absolutely. The kit uses standard 940nm IR LEDs, identical to those in TV remotes. They emit low-power infrared light that is invisible to the eye.
How can I extend this project after building it?
Once the basic alarm works, you can attach a relay module to trigger a larger siren, add a laser diode for a longer-range beam, or connect the Arduino to a mobile app for remote arming. The breadboard layout makes it easy to modify and expand.
IR LED and photodiode beam — break it and buzzer fires. Intro to IR emitter/receiver pairs.
What's in this kit
- Arduino Uno R3
- IR LED 940nm x2
- IR Photodiode x2
- Active Buzzer
- 5mm Red LED x3
- LM358 Op-Amp
- 10kΩ Resistors x10
- 1kΩ Resistors x5
- 220Ω Resistors x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
