Raspberry Pi Zero – 1GHz Single-Board Computer with 512MB RAM

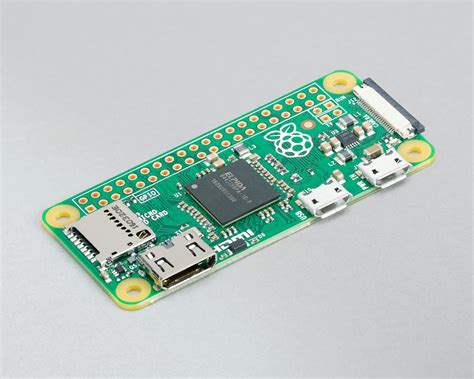

The Raspberry Pi Zero is an ultra-compact single-board computer built around a 1GHz single-core ARM11 processor and 512MB of RAM. It delivers full Linux capability in a board smaller than a credit card, making it ideal for embedded projects, IoT devices, and portable builds where space and power are critical. With its 40-pin GPIO header and flexible connectivity, it opens up countless possibilities for prototyping and production.
Key Specifications
| Specification | Value |
|---|---|
| Processor | Broadcom BCM2835 single-core ARM11 @ 1GHz |
| RAM | 512MB LPDDR2 SDRAM |
| GPIO Header | 40-pin (unpopulated), 2x20 arrangement |
| Video Output | Mini HDMI, composite via GPIO |
| USB Connectivity | Micro USB OTG for data and peripherals |
| Power Supply | 5V via micro USB, about 100 mA typical bare-board draw (1.2 A supply recommended) |
What You Can Build With This
- Retro gaming console with a miniature form factor
- Portable IoT sensor hub for environmental monitoring
- Smart home controller to automate lights and appliances
- USB gadget emulator for keyboard, mouse, or network adaptern
Compatibility
The Raspberry Pi Zero works with any standard 5V micro USB power supply and runs the same Raspbian (now Raspberry Pi OS) as its larger siblings. Its 40-pin GPIO header shares the same pinout as other modern Raspberry Pi boards, so software libraries and most add-on boards are compatible once the header is soldered. Common pairings include Pimoroni pHATs and Adafruit Bonnets, though many require a separate micro USB OTG adapter for input devices.
Wiring Notes
The GPIO header arrives unpopulated; soldering a 2x20 male header is necessary to connect sensors and peripherals. For USB devices like keyboards or Wi-Fi dongles, use a micro USB OTG adapter—standard USB-A ports are not present. Power the board via the micro USB port labeled “PWR” with a 1.2A supply (the recommended rating) to avoid brownouts during boot.
Is this compatible with other Raspberry Pi models?
The GPIO pinout is identical to the Raspberry Pi 3 and 4, but the Zero uses a different processor and form factor, so performance and peripheral ports differ. Software written for the Pi 3/4 usually runs as long as you use the ARMv6-compatible OS image.
Does this model have built-in Wi-Fi?
No, the standard Raspberry Pi Zero does not include wireless connectivity. For Wi-Fi and Bluetooth, consider the Raspberry Pi Zero W variant, which adds these features on the same tiny board.
What power supply is recommended?
A 5V 1.2A micro USB power adapter is the recommended supply. The bare board draws about 100 mA typical; USB devices on the OTG port add to that, so choose a quality adapter.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
- COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
- Delivery Timeline: Dispatch in 35 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
The official datasheet / documentation for this part:
View DatasheetPinout
| Pin | Function |
|---|---|
| GPIO2 | digital, output, i2c sda, fixed pullup |
| GPIO3 | digital, output, i2c scl, fixed pullup |
| GPIO4 | digital, output |
| GPIO5 | digital, output |
| GPIO6 | digital, output |
| GPIO7 | digital, output, spi ce1 |
| GPIO8 | digital, output, spi ce0 |
| GPIO9 | digital, output, spi miso |
| GPIO10 | digital, output, spi mosi |
| GPIO11 | digital, output, spi sclk |
| GPIO12 | digital, output, pwm |
| GPIO13 | digital, output, pwm |
| GPIO14 | digital, output, uart tx |
| GPIO15 | digital, output, uart rx |
| GPIO16 | digital, output |
| GPIO17 | digital, output |
| GPIO18 | digital, output, pwm |
| GPIO19 | digital, output, pwm |
| GPIO20 | digital, output |
| GPIO21 | digital, output |
| GPIO22 | digital, output |
| GPIO23 | digital, output |
| GPIO24 | digital, output |
| GPIO25 | digital, output |
| GPIO26 | digital, output |
| GPIO27 | digital, output |
I2C: SDA GPIO2, SCL GPIO3
