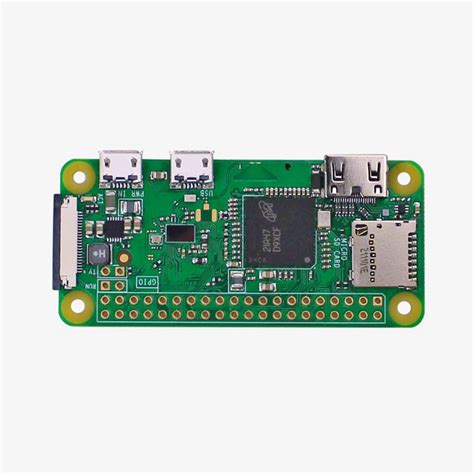

Raspberry Pi Zero W – Wi-Fi Bluetooth Headerless Board
Raspberry Pi Zero W – Wireless with Built-in Wi-Fi and Bluetooth, Headerless
The Raspberry Pi Zero W is a compact single-board computer featuring integrated 802.11 b/g/n Wi-Fi and Bluetooth 4.1. Ideal for IoT projects, portable devices, and embedded systems, this headerless variant arrives without pre-soldered GPIO pins, giving you full flexibility in connecting peripherals. Its low power consumption and tiny footprint make it perfect for space-constrained applications.
Key Specifications
| Specification | Value |
|---|---|
| Processor | Broadcom BCM2835, 1GHz single-core ARM11 |
| Memory | 512MB LPDDR2 SDRAM |
| Wireless Connectivity | 2.4GHz Wi-Fi 802.11 b/g/n, Bluetooth 4.1 |
| Ports | Mini HDMI, micro USB OTG, micro USB power, CSI camera connector |
| GPIO | 40-pin header (unpopulated, headerless) |
| Power | 5V via micro USB, typical draw 150mA |
What You Can Build With This
- Portable retro gaming console using RetroPie
- Wireless IoT sensor hub for home automation
- Networked security camera with motion detection
- Miniature web server or DNS ad-blocker (Pi-hole)
Compatibility
The board runs Raspberry Pi OS Lite and standard Linux distributions, compatible with any 5V micro USB power source and microSD card (not included). It pairs seamlessly with common Raspberry Pi HATs (header required) and USB peripherals via an OTG adapter. Works with Arduino shields when using a level shifter or hat adapter.
Wiring Notes
GPIO pins are unpopulated; solder a 40-pin male header (2.54mm pitch) if your project requires physical connections. For initial setup, power via the micro USB PWR port and connect a USB hub for keyboard/mouse. The OTG port can be used as a USB device or host. No pull-up resistors are needed on I2C lines as they have onboard 1.8kΩ pull-ups to 3.3V.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 3/4 accessories?
Most accessories work, but the smaller form factor means cases, HATs, and camera cables designed for the Zero series are required. You will need mini HDMI and micro USB adapters for standard peripherals.
Does it come with an SD card or power supply?
No, this is the board only. You'll need a microSD card loaded with an OS and a 5V micro USB power supply (like a phone charger).
Can I use it as a headless server without a display?
Yes, after initial OS setup you can enable SSH and connect wirelessly without any display, ideal for remote projects.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
