Arduino PWM Fan Controller with RPM – Adjust Speed, Read RPM on LCD
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Twist a knob and watch a 12V PC fan spin faster or slower, while a 16x2 LCD shows the exact revolutions per minute—measured in real time by a magnetic Hall sensor. This kit turns Arduino into a closed-loop motor controller, giving you a working tachometer and a tangible introduction to sensor-driven automation.
What You'll Build
You’ll wire the fan, potentiometer, and Hall sensor on a breadboard, upload PWM control code to the Arduino Uno, and mount the sensor to detect blades passing by. The RPM updates live on the LCD, letting you verify how pot twist directly changes fan velocity. It’s a complete motor speed measurement system from scratch.
What You'll Learn
- Write Arduino code that generates PWM signals and varies fan speed.
- Interface a Hall effect sensor to detect magnetic pulses from fan blades.
- Display real-time data on a 16x2 LCD using I2C communication.
- Convert Hall sensor pulses into accurate revolutions per minute (RPM).
Kit Contents
| Component | Quantity |
|---|---|

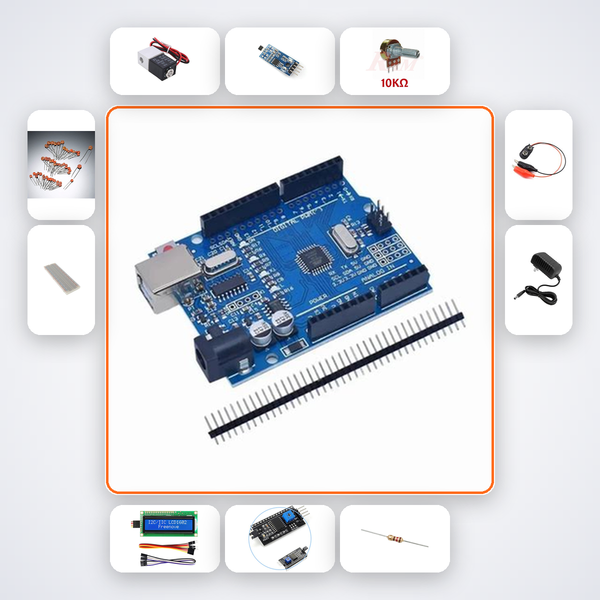

| Arduino Uno R3 | 1 |
| 12V PC Fan | 1 |
| A3144 Hall Sensor | 1 |
| 10kΩ Potentiometer | 1 |
| 16x2 LCD | 1 |
| I2C Backpack | 1 |
| 10kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 12V Adapter | 1 |
